Polycom Conference Phone Poly Trio 8300

• Ideal for small sized rooms
• Wi-Fi audio calling (2.4-5 GHz)2
• built-in Wi-Fi, USB and Bluetooth® and IP connectivity
• 3 cardioid microphones, Pickup range 3.7 m/12 ft range, Poly NoiseBlock eliminates background noise
• Call timer and call waiting, Call transfer, hold, divert (forward), pickup Called, calling, connected-party information

DESCRIPTIONS

GO BIG IN A SMALL ROOM

Think your small meeting room has limited possibilities? Think again. Poly Trio 8300 transforms any small conference hub into a smart collaboration space with the touch of a button. Plus, you get future-proof flexibility with the option to easily add video conferencing and content sharing accessories. Help your teams get more done in less space—and make meetings more engaging for everyone.

KEY FEATURES

LEGENDARY AUDIO

Room-filling audio up to 14KHz and up to 12’/3.7m mic range. Industry-leading full duplex, echo cancellation and noise reduction with intelligent processing gives you the superior quality audio experience you expect during video conference.

Polycom_video conference_Trio_8300
Polycom_video conference_Trio_8300

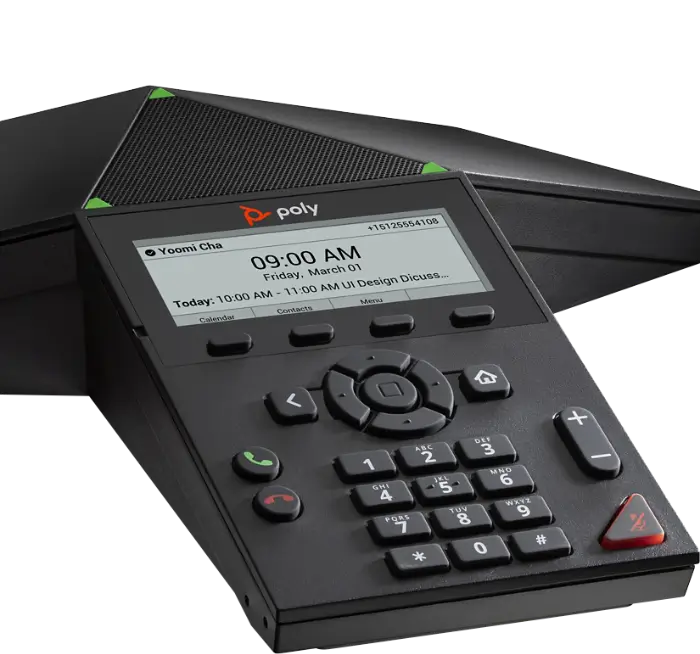

A CLASSIC KEYPAD

Classic keypad and LCD display with simple-to-use menu navigation.

BLUETOOTH®

Easily connect your mobile device or laptop via Bluetooth and use Trio as the speakerphone to enhance the audio experience during video conference when using personal devices.

Polycom_video conference_Trio_8300
Polycom_video conference_Trio_8300

HYBRID REGISTRATION

Connect to one or multiple leading SIP and Cloud Conferencing Services at the same time. No need to choose just one.

WI-FI CONNECTIVITY

2.4-5GHz Wi-Fi audio calling reduces cabling needs.

Polycom video conference Trio 8300 2

SPECIFICATIONS

  • Phone: 33.9 x 29.4 x 6 cm (13.3 x 11.5 x 2.4 in)
  • Unit weight: 735 g (1.62 lbs)
  • Box dimensions: (L x W x H): 40 x 36 x 8.5 cm (15.7 x 14.1 x 3.5 in)
  • Box weight: approx. 1.76 Kg (2.2 lbs)
  • Operating temperature: 0 to 40 °C (+32 to 104 °F)
  • Relative humidity: 5% to 95% (non-condensing)
  • Storage temperature: -20 to +70 °C (-4 to +160 °F)

AUDIO

  • Three cardioid microphones
  • Loudspeaker frequency: 220-14,000 Hz
  • Volume: 90 dB at 0.5-m peak volume
  • 3.7 m/12 ft microphone pickup range



AUDIO FEATURES

  • Audio Codecs
    • G.711 (A-law and μ-law)
    • G.722
    • G.722.1, G.722.1C
    • G.729AB
    • G.719
    • SILK
    • Polycom® Siren™ 7, Siren™ 14
    • iLBC (3.33Kbps and 15.2Kbps)
    • Opus (8Kbps-24Kbps)
  • NoiseBlock
  • Voice activity detection
  • Acoustic Clarity™ technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression–Type 1 compliant (IEEE 1329 full duplex)
  • Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P) 2
  • DTMF tone generation (RFC 2833 and in-band)
  • Comfort noise generation
  • Low-delay audio packet transmission
  • Adaptive jitter buffers
  • Packet loss concealment



CALL HANDLING FEATURES*

  • Up to three lines (registrations)
  • Shared call/bridged line appearance
  • Distinctive incoming call treatment/call waiting
  • Call timer and call waiting
  • Call transfer, hold, divert (forward), pickup
  • Called, calling, connected-party information
  • Local three-way audio conferencing
  • One-touch speed dial and meeting join
  • Do-not-disturb function
  • Local configurable digit map/dial plan
  • Corporate directory access using LDAP
  • Visual conference management
  • *Most software-enabled features and capabilities must be supported by the server. Please contact your IP PBX/Softswitch vendor or service provider for a list of supported features.



NETWORK AND PROVISIONING

  • IETF SIP (RFC 3261 and companion RFCs)
  • SDP
  • Single-port gigabit Ethernet 10/100/1000Base-TX across LAN
  • Wi-Fi network connectivity
    • 2.4–2.4835 GHz (802.11b, 802.11g, 802.11n HT20)
    • 5.15–5.825 GHz (802.11a)
  • Manual or dynamic host configuration protocol (DHCP) network setup
  • Time and date synchronization using SNTP
  • FTP/TFTP/HTTP/HTTPS server-based central provisioning
  • RealPresence Resource Manager (v 10.7 or above) based provisionin
  • Provisioning and call server redundancy support
  • Polycom Zero Touch Provisioning
  • PDMS-E, PDMS-SP



QOS SUPPORT

  • IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
  • VLAN-CDP, DHCP VLAN discovery
  • LLDP-MED for VLAN discovery



SECURITY

  • FIPS 140-2 compliant cryptographic module
  • 802.1X authentication and EAPOL
  • Media encryption via SRTP
  • Transport layer security (TLS) v1.2
  • Encrypted configuration files
  • Digest authentication
  • Password login
  • Support for URL syntax with password for boot server address
  • HTTPS secure provisioning
  • Support for signed software executables
  • Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)2



POWER

  • LAN IN: Built-in auto-sensing IEEE 802.3af. PoE Device (Class 0)
  • Optional power kit includes extended single-port gigabit midspan, 802.3af Type 2 compliant, local power cord and network cable
  • ENERGY STAR® rated



APPROVALS

  • FCC Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • EN55032 Class B
  • CISPR22 Class B
  • EN55024
  • EN61000-3-2, EN61000-3-3
  • NZ Telepermit
  • Australia RCM
  • ROHS Compliant
  • So. Africa ICASA
  • Saudi Arabia CITC
  • Singapore IMDA
  • UAE TRA
  • Japan MIC/VCCI
  • Australia/NZ RCM
  • Brazil ANATEL



RADIO**

  • US
    • FCC Part 15C
    • FCC Part 15E
  • CANADA
    • RSS 247 Issue 1
  • EEA
    • ETSI EN 300 328 V1.9.1
    • ETSI EN 301 489-3
    • ETSI EN 301489-1
    • ETSI EN 301489-17
  • Australia/New Zealand
    • AS/NZS 4268
  • **Not available with the Poly Trio 8300 NR (No Radio) version only.



SAFETY

  • UL 60950-1 and UL 62368-1
  • CSA C22.2 No. 60950-1-07
  • CSA C22.2 No. 62368-1-14
  • CE Mark
  • EN 60950-1 & EN 62368-1
  • IEC 60950-1 & IEC 62368-1
  • AS/NZS 60950.1
  • AS/NZS 62368.1



TRIO 8300 SHIPS WITH

  • Phone console: 2200-66840-xxx
  • 7.6 m/25 ft network cable CAT 5e
  • Setup sheet



WARRANTY

One year
