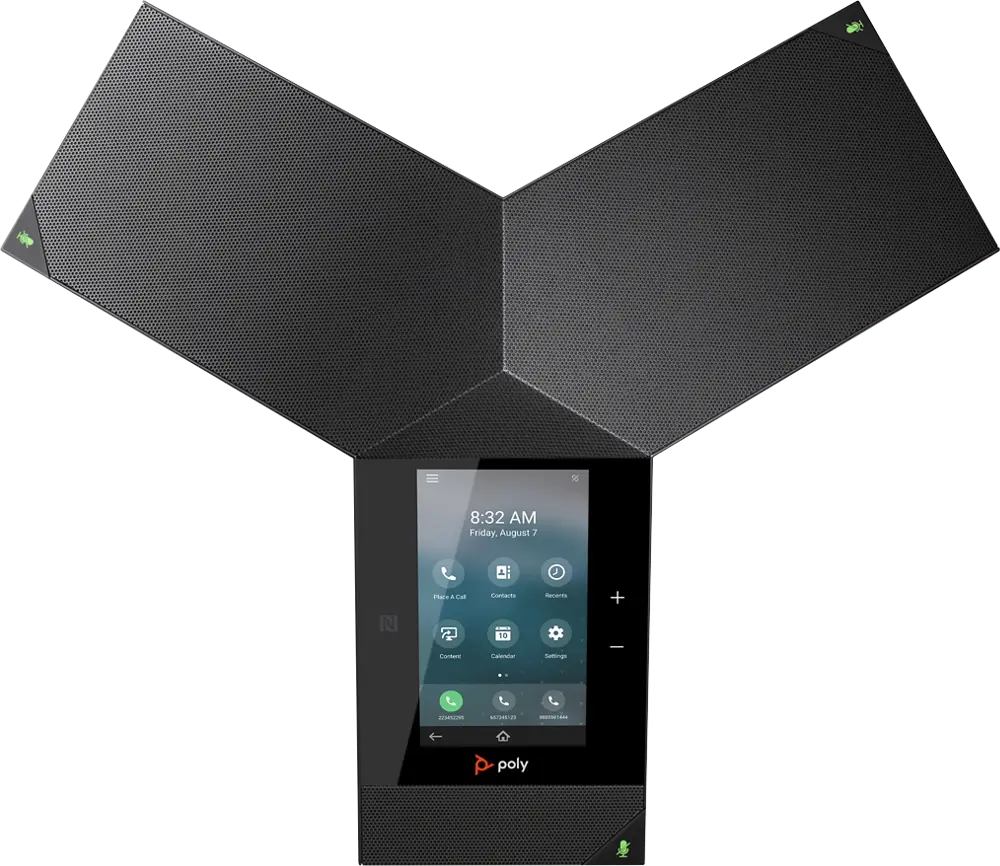

Polycom Conference Phone Trio 8800

Video Conferencing

• Ideal for medium and large sized rooms
• 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio, On-screen virtual keyboard,  multitouch-capable capacitive touch screen
• 3 multicolored capacitive-touch mute indicators
• Built-in Wi-Fi, USB and Bluetooth®
• 3 cardioid microphones, Pickup range 6 m/20 ft pickup, Poly NoiseBlock prevent from being interrupted

Tag: Polycom

Description

Descriptions

polycom_video Conference_Trio_8800
polycom_video Conference_Trio_8800
polycom_video Conference_Trio_8800

LARGE ROOMS, UNLIMITED POSSIBILITIES

Supplying room-filling audio to large meeting rooms might be a challenge for some conference phones. Not for Trio 8800. Specially tuned mics catch every word in a 20-foot range. Wi-Fi, USB and Bluetooth® connectivity is built in. And video conferencing and content sharing can be easily added, ensuring future-proof flexibility. Get ready to transform your large spaces into powerhouses for collaboration.

Key Features

EXCEPTIONAL AUDIO

Room-filling audio up to 22KHz with industry-leading full duplex, echo cancellation and noise reduction with intelligent processing gives you superior audio quality during video conference.

polycom_video Conference_Trio_8800
polycom_video Conference_Trio_8800

A SIMPLE INTERFACE

The 5″ color touch display puts familiar, easy-to-use icons and user controls at your fingertips for quick meeting starts —and calendar integration ensures your meetings get started in seconds with one-touch-join.

BLUETOOTH®/NFC

Easily connect your mobile device or laptop via Bluetooth®/NFC or USB, and use Trio as the speakerphone to enhance the audio experience of personal devices.

Polycom_videoconference_Trio_8800
polycom video Conference Trio 8800 2

HYBRID REGISTRATION

Connect to one or multiple leading SIP and Cloud Conferencing Services at the same time—no need to choose just one.

THOUGHTFUL DESIGN

Illuminated mute indicators on each leg of the device are within easy reach—so everyone can clearly see when the mic is live and when it’s muted during video conference.

polycom_video Conference_Trio_8800

Specifications

BOX DIMENSIONS
  • 48.3 x 11.5 x 39.4 cm (19 x 4.5 x 15.5 in)
  • Box weight: 1970 g/4.3 lbs
  PHONE DIMENSIONS
  • 38.3 x 7.5 x 33.2 cm (15.1 x 2.9 x 13.1 in)
  • Unit weight: 950 g/2.1 lbs
  • Operating temperature: 0 to 40°C (+32 to 104°F)
  • Relative humidity: 5% to 95% (non-condensing)
  • Storage temperature: -20 to +70°C (-4 to +160°F)

USER INTERFACE FEATURES

  • Gesture-based, multitouch-capable capacitive touch screen
  • 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio
  • On-screen virtual keyboard
  • 1x USB 2.0 Type A-compliant host port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation)
  • 1x USB 2.0 Micro-B device port for use as USB audio device
  • Integrated Bluetooth 4.0 and NFC
  • 3 multicolored capacitive-touch mute indicators
  • Unicode UTF-8-character support
  • User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish



AUDIO FEATURES

  • 3 cardioid microphones
  • Loudspeaker
    • Frequency: 100-22,000 Hz
    • Volume: 92 dB at 0.5-m peak volume
  • 6 m/20 ft microphone pickup range
  • Supported codecs:
    • G.711 (A-law and μ-law)
    • G.719
    • G.722, G722.1, G722.1C
    • G.729AB
    • Poly Siren 7, Siren 14
    • iLBC (3.33Kbps and 15.2Kbps)
    • Opus (8Kbps - 24Kbps)
    • SILK
    • Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression–Type 1 compliant (IEEE 1329 full duplex)
  • NoiseBlock™
  • Voice activity detection
  • Comfort noise generation
  • DTMF tone generation (RFC 2833 and in-band)
  • Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
  • Low-delay audio packet transmission
  • Adaptive jitter buffers
  • Packet loss concealment



CALL HANDLING FEATURES

  • Up to three lines (max. one Skype for Business and Microsoft Teams)
  • Shared call/bridged line appearance
  • Distinctive incoming call treatment/call waiting
  • Call timer and call waiting
  • Call transfer, hold, divert (forward), pickup
  • Called, calling, connected-party information
  • One-touch speed dial and meeting join
  • Local five-way audio conferencing
  • Daisy-chain up to three
  • Do-not-disturb function
  • Local configurable digit map/dial plan
  • Corporate directory access using LDAP
  • Visual conference management



NETWORK AND PROVISIONING

  • Open SIP
  • Skype for Business certified * (conference phone only)
  • Microsoft Teams certified * (conference phone only)
  • Zoom certified
  • IETF SIP (RFC 3261 and companion RFCs)
  • Two-port gigabit Ethernet switch
    • 10/100/1000Base-TX across LAN and 2nd port
    • 2nd port supports IEEE 802.3af PSE
  • Wi-Fi network connectivity
    • 2.4–2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)
    • 5.15–5.825 GHz (802.11a, 802.11n, HT‑20, 802.11n HT-40)
  • Manual or dynamic host configuration protocol (DHCP) network setup
  • Time and date synchronization using SNTP
  • FTP/TFTP/HTTP/HTTPS server-based central provisioning
  • RealPresence Resource Manager (v. 10.1 or above) based provisioning
  • Poly Zero Touch Provisioning
  • Provisioning and call server redundancy support
    • RealPresence Resource Manager (v 10.1 or above) based provisioning
    • PDMS-E, PDMS-SP
  • QoS support
    • IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
    • WMM (Wi-Fi multimedia)
  • VLAN – CDP, DHCP VLAN discovery
  • LLDP-MED for VLAN discovery



SECURITY

  • FIPS 140-2 compliant cryptographic module
  • 802.1X authentication and EAPOL
  • Media encryption via SRTP
  • Transport layer security (TLS v1.2)
  • Encrypted configuration files
  • Digest authentication
  • Password login
  • Support for URL syntax with password for boot server address
  • HTTPS secure provisioning
  • Support for signed software executables
  • Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)



POWER

  • LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af
  • LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation)



APPROVALS

  • Japan MIC/VCCI Class B
  • FCC Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • CISPR22 Class B
  • VCCI Class B
  • EN 301 489-1, EN 301 489-3, EN 301 489‑17
  • EN61000-3-2; EN61000-3-3
  • NZ Telepermit
  • Australia A&C Tick
  • ROHS compliant



RADIO

  • US
    • FCC Part 15.247
    • FCC Part 15.407
    • FCC Part 15.225
  • Canada
    • RSS 247 Issue 1
  • EU
    • ETSI EN 300 328 v1.9.1
    • ETSI EN 301 893 v1.7.1
    • ETSI EN 300 328 v1.9.1
  • Japan
    • Japan Item (19)
    • Japan Item (19)-3
    • Japan Item (19)-3-2
  • Australia
    • AS/NZ4268



SAFETY

  • UL 60950-1
  • UL 62368-1
  • CE Mark
  • CAN/CSA-C22.2 No. 60950-1-03
  • CAN/CSA C22.2 No. 62368-1-14EN 60950-1
  • EN 60950-1
  • EN 62368-1
  • IEC 60950-1
  • IEC 62368-1
  • AS/NZS 60950-1
  • AS/NZS 62368-1-17



TRIO 8800 SHIPS WITH

  • Open SIP Conference phone 2200-66070-025 OR Skype for Business or Microsoft Teams conference phone 2200-66070-019
  • 7.6 m/25 ft network cable CAT 5e
  • 2 m/6.5 ft USB 2.0 cable
  • Cable wrap
  • Tactile overlay for improved accessibility
  • Setup sheet



ACCESSORIES (OPTIONAL)

  • Trio Expansion Microphones (2200-65790-001)
  • Power kit incl. ext. single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (7200-23490-xxx)



WARRANTY

  • 1 year
