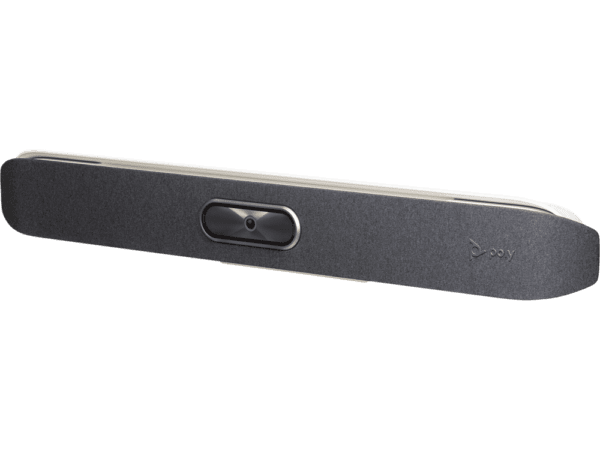

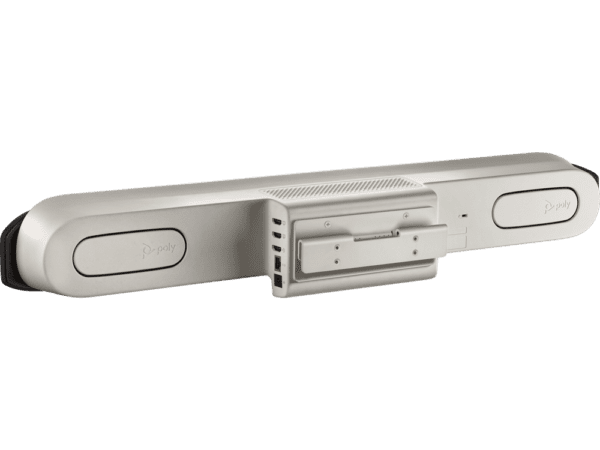

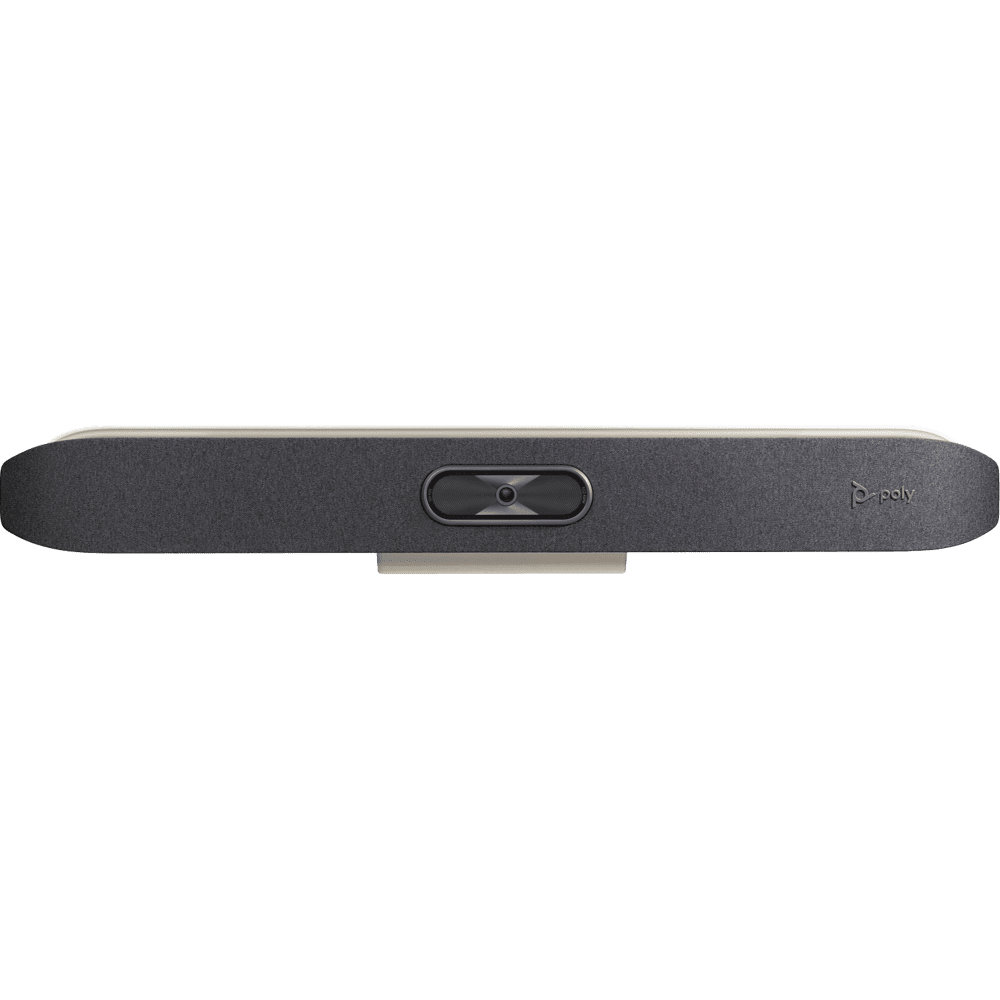

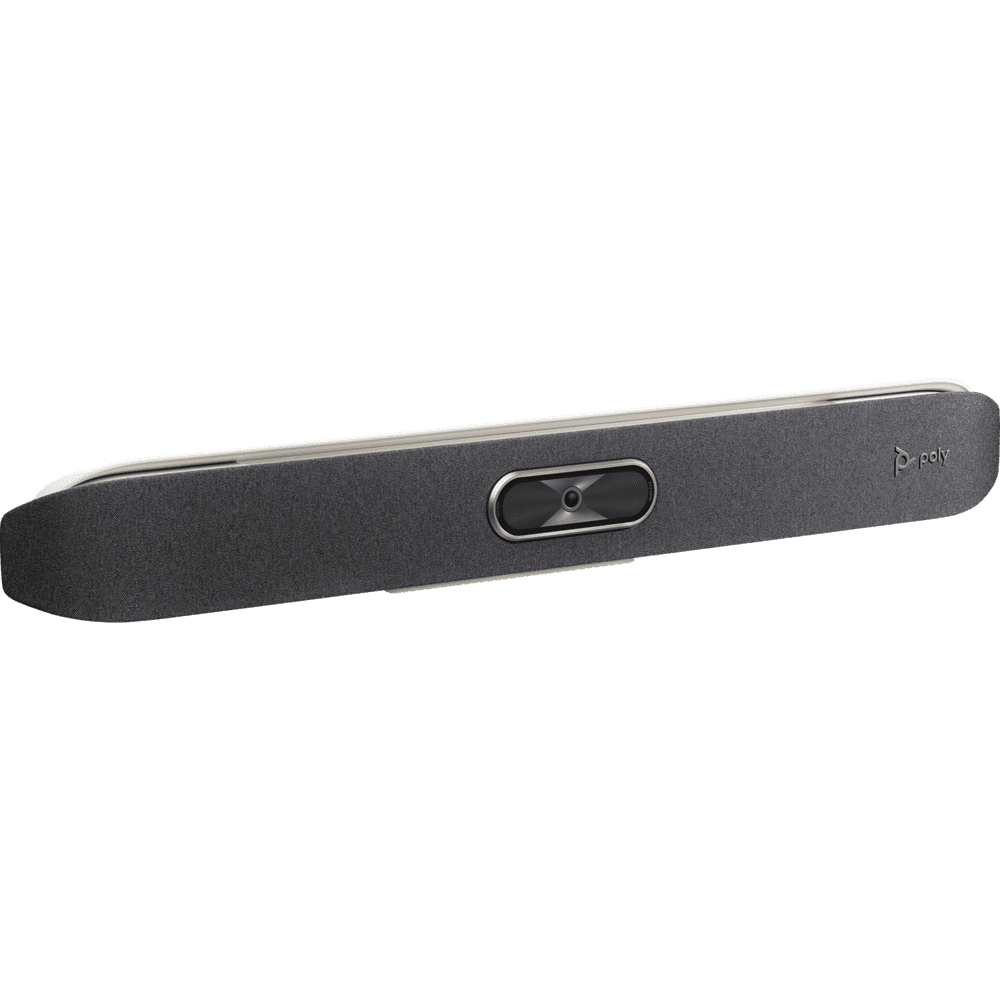

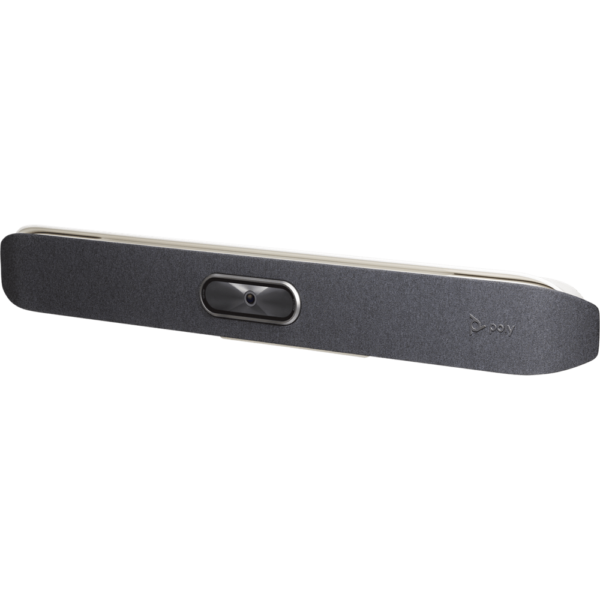

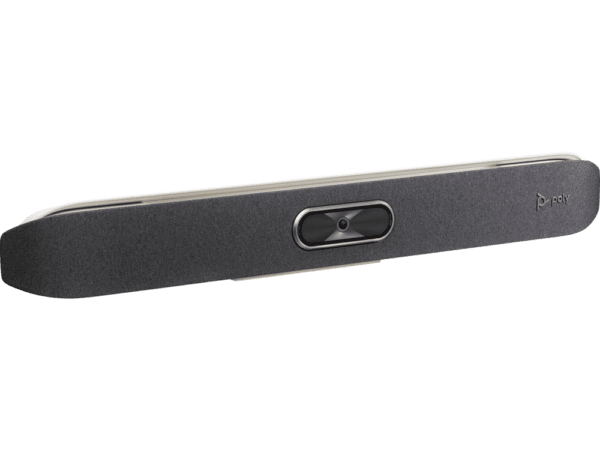

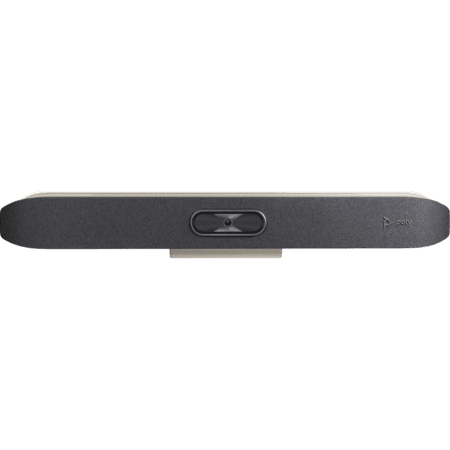

Polycom All-in-One Bar Poly Studio X50

• Ideal for small and medium sized rooms
• 5x digital zoom, 120° FOV , UHD 2160p (4K) capture resolution
• Automatic people framing, Automatic speaker tracking
• Microphone pickup range 25 ft
• Can be connected easily with any video collaboration software and no PC or Mac required as supported with cloud video services built right in.

Descriptions

RADICALLY SIMPLE VIDEO CONFERENCING

Experience full board-room-quality audio, and knock-your-socks-off video, for mid-sized rooms. The Poly Studio X50 all-in-one video bar is radically simple to use with support for leading cloud video services built right in—no PC or Mac required. Voices are crisp and clear. Video feels natural. And wireless content sharing lets users collaborate from their devices without cables or pucks.

Key Features

RICH, ROOM FILLING AUDIO

High performance stereo speakers with a unique acoustic chamber design delivers rich audio that reaches all parts of the room during video conferencing.

Polycom_videoconference_studio X50
Polycom_videoconference_studio X50

ADVANCED MICROPHONE DESIGN

Unique second order gradient microphones pick up all corners of the room with incredible clarity.

SMART CAMERA

Feel connected with production-quality camera framing and tracking that keeps the visual focus in the right place throughout the conversation.

Polycom_videoconference_studio X50
Polycom_videoconference_studio X50

NOISE BLOCKING INNOVATIONS

Keep distracting noise and outside conversations from disrupting your meeting during video conferencing with Poly NoiseBlockAI and Acoustic Fence.

CLOUD VIDEO SOFTWARE BUILT RIGHT IN

No PC or Mac needed for always-on connectivity to your favorite video platforms.

Polycom_videoconference_studio X50

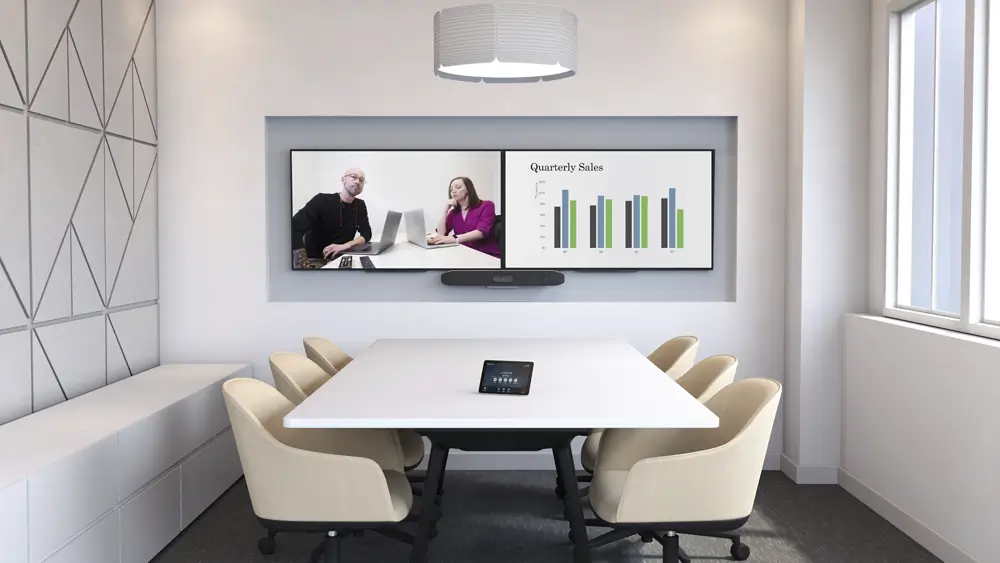

studio x50 medium room rendering

DUAL DISPLAY SUPPORT

Connect two monitors to see both people that join video conference and content in full size.

Specifications

  • 30 W x 4 H x 4 D (Inches) 762 W x 102 H x 102 D (MM)
  • 5.6 lbs/2.54 kg
  • Operating temperature: 0 to 40 °C
  • Operating humidity (non-condensing):15 to 80%
  • Non-operating temperature: -40 to 70 °C
  • Non-operating humidity (non-condensing): 5 to 95%
  • Maximum altitude: 16,000 ft

VIDEO STANDARDS AND PROTOCOLS

H.264 AVC, H.264 High Profile, H.265



VIDEO INPUT
1x HDMI



VIDEO OUTPUT

  • 2x HDMI
  • Touch display compatible



PEOPLE VIDEO RESOLUTION

  • 4K, 30 fps (TX & RX) from 2048 Kbps*
  • 1080p, 60 fps from 1740 Kbps
  • 1080p, 30 fps from 1024 Kbps
  • 720p, 60 fps from 832 Kbps
  • 720p, 30 fps from 512 Kbps



CONTENT VIDEO RESOLUTION

  • Input
    • UHD (3840 x 2160)
    • HD (1920 x 1080p)
    • WSXGA+ (1680 x 1050)
    • UXGA (1600 x 1200)
    • SXGA (1280 x 1024)
    • WXGA (1280 x 768)
    • HD (1280 x 720p)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
  • Output
    • UHD (3840 x 2160)
    • WUXGA (1920 x 1200)
    • HD (1920 x 1080)
    • WSXGA+ (1680 x 1050)
    • SXGA+ (1400 x 1050)
    • SXGA (1280 x 1024)
    • HD (1280 x 720)
    • XGA (1024 x 768)
  • Content frame rate
    • 5–60 fps (up to 4K resolution at 15 fps in call)



CONTENT SHARING

  • Poly Content app
  • Apple Airplay
  • Miracast
  • HDMI input
  • Digital Whiteboarding



CAMERA

  • 5x digital zoom
  • 120° FOV
  • UHD 2160p (4K) capture resolution
  • Electronic pan/tilt/zoom
  • Automatic group framing
  • Automatic speaker tracking



AUDIO INPUT

  • 3x MEMS microphones, plus 2x 2nd order microphones
  • 1x HDMI
  • 1x 3.5 mm line-in
  • Microphone pickup range 25ft



AUDIO OUTPUT

  • Stereo speakers
  • 1x 3.5 mm line-out



OTHER INTERFACES

  • 2x USB-A (3.0)
  • 1x USB-C
  • Bluetooth 5.0
  • WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency



AUDIO STANDARDS AND PROTOCOLS

  • 22 kHz bandwidth with Polycom Siren 22 technology
  • 20 kHz bandwidth with G.719 (M- Mode)and Polycom Siren 22 technology
  • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
  • 7 kHz bandwidth with G.722, G.722.1
  • 3.4 kHz bandwidth with G.711, G.728, G.729A



NETWORK

  • IPv4
  • IPv6
  • 1x 10/100/1G Ethernet
  • Auto-MDIX
  • H.323 and/or SIP up to 6 Mbps running Poly Video App
  • Lost Packet Recovery (LPR) technology
  • Dynamic bandwidth allocation
  • Reconfigurable MTU size
  • Web proxy support—Basic, Digest, and NTLM
  • Simple Certificate Enrollment Protocol (SCEP)



SECURITY

  • Media encryption (H.323, SIP): AES-128, AES-256
  • H.235.6 support
  • Authenticated access to admin menus, web interface, and API
  • Local account password policy configuration
  • Security profiles
  • Local account and login port lockout
  • Secure defaults
  • Remote logging with support for TLS
  • Active directory external authentication



OPTIONS

  • VESA mount kit
  • Stand

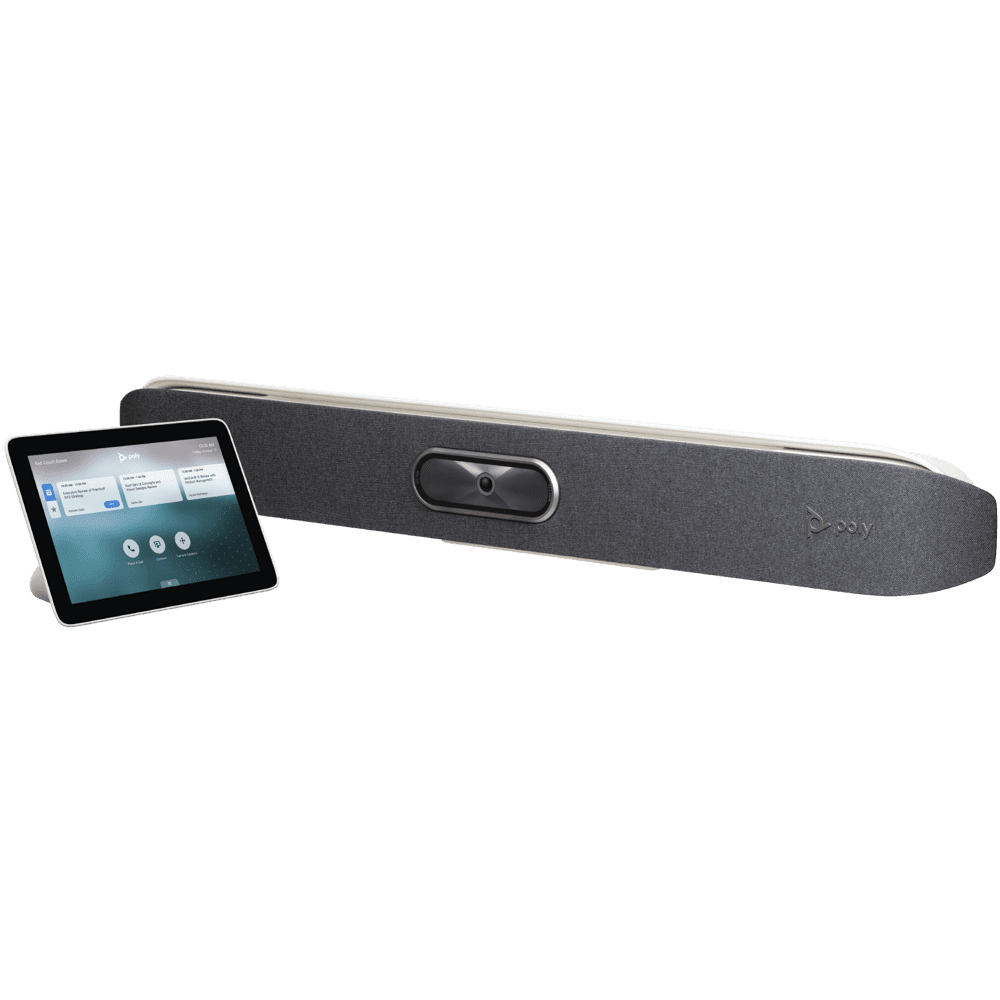

  • Poly TC8
  • Poly Bluetooth remote control
  • Poly Trio
  • Studio Extension Microphone



INTEROPERABILITY

  • Zoom Certified
  • Microsoft Teams Certified
  • All cloud service providers through Poly Video App Mode
  • USB device mode
  • Support for native 3rd party applications includes Zoom, Microsoft Teams, 8x8, GoToRoom, RingCentral and StarLeaf



ELECTRICAL

  • Auto sensing power supply
  • Typical operating voltage/power
    • 37 VA @ 120 V @ 60 Hz
    • 37 VA @ 230 V @ 50/60 Hz
  • Typical BTU/h: 65



WARRANTY

One-year return to factory parts and labor
