Aten 2-Port True 4K HDMI Splitter – VS82H
Accessories-Distributes one True 4K source to two HDMI displays at the same time
-Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
-HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
-Quality and durable aluminum metal enclosure
Description
Descriptions
![Aten 2-Port True 4K Hdmi Splitter - Vs82H](https://www.israk.my/wp-content/uploads/VS82H_EC_Gallery_Photos_1100x600px_1.jpg)

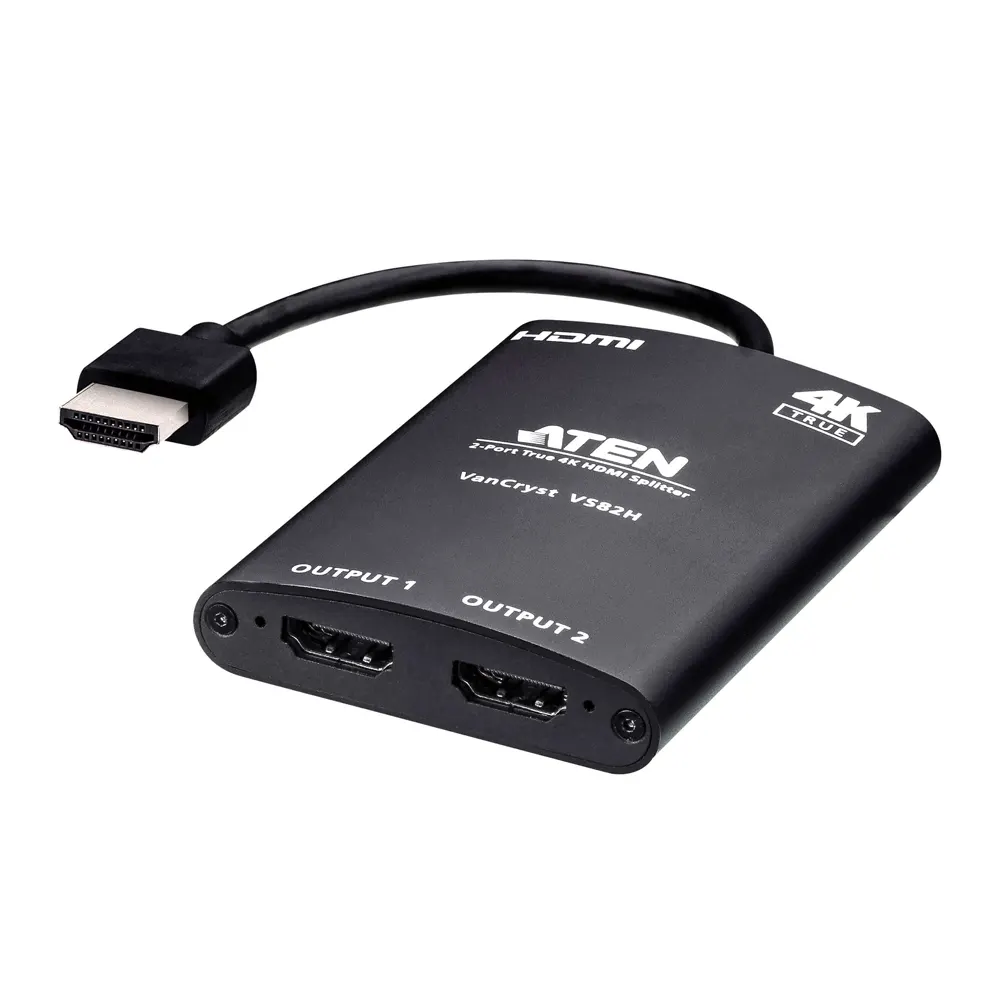

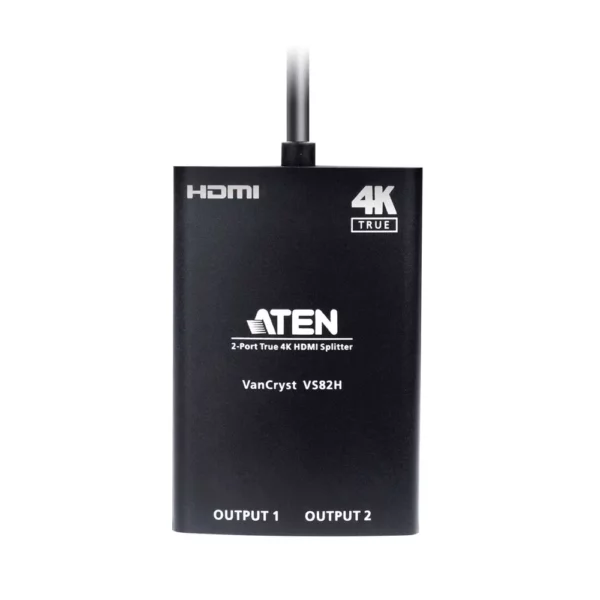

The ATEN VS82H splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It supports HDMI-enabled equipments from DVD players, satellite set-top boxes to all HDMI displays.
Aside from being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.
What’s more, the VS82H is a bus-powered splitter that can be charged directly from a device connected through Micro-USB port. Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.
- Distributes one True 4K source to two HDMI displays at the same time
- Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
- Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
- Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
- Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
- Quality and durable aluminum metal enclosure
Key Features
![Aten 2-Port True 4K Hdmi Splitter - Vs82H vs82h.professional audiovideo.video splitters.others](https://www.israk.my/wp-content/uploads/vs82h.professional-audiovideo.video-splitters.others-1280x1280.jpg)

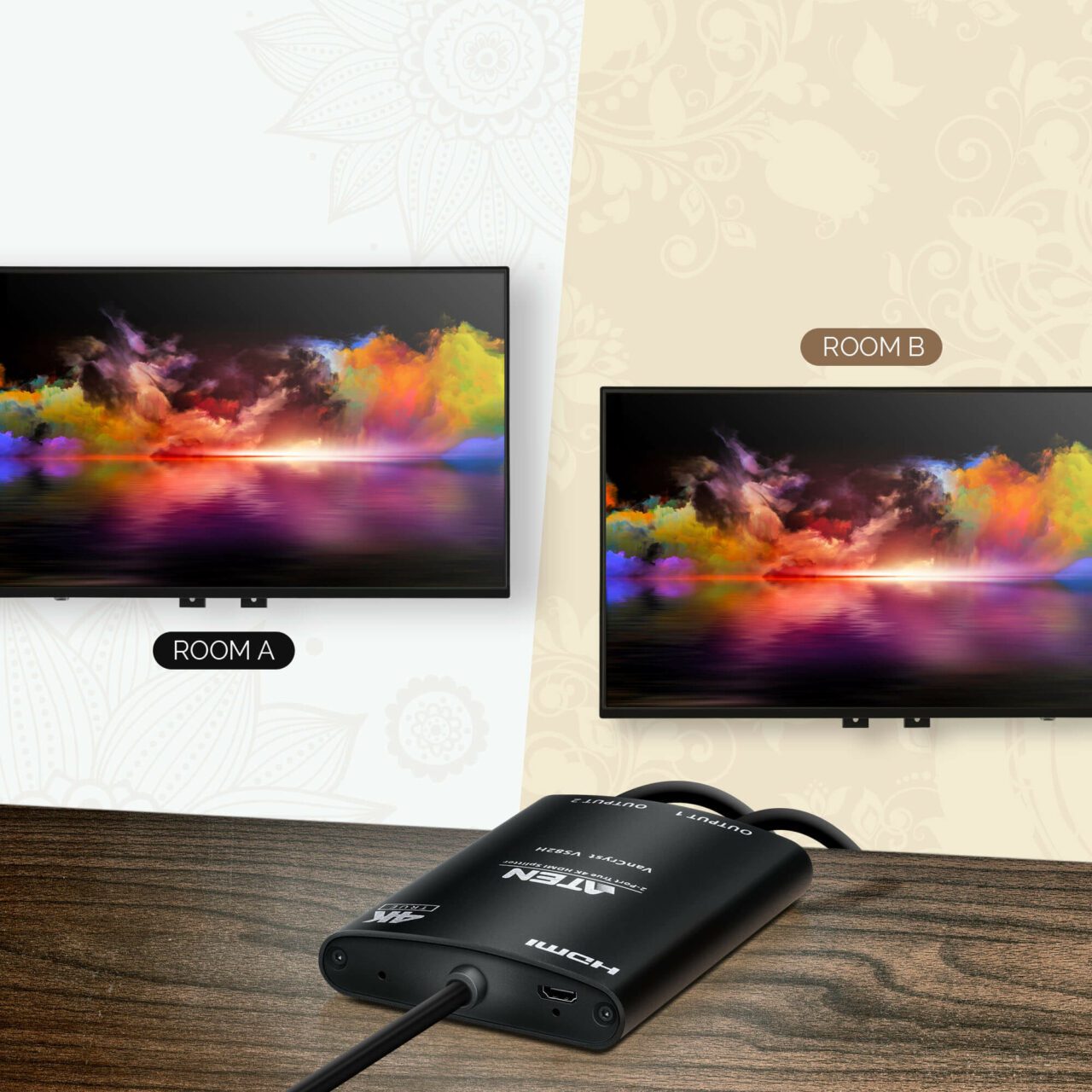

Duplicate the Same Screen
Display True 4K content to 2 displays at once.
Broad Compatibility
Connect to any HDMI video source and start sharing. No drivers required.
![Aten 2-Port True 4K Hdmi Splitter - Vs82H vs82h.professional audiovideo.video splitters.others 2](https://www.israk.my/wp-content/uploads/vs82h.professional-audiovideo.video-splitters.others_2-1280x1280.jpg)
![Aten 2-Port True 4K Hdmi Splitter - Vs82H vs82h.professional audiovideo.video splitters.others 3](https://www.israk.my/wp-content/uploads/vs82h.professional-audiovideo.video-splitters.others_3-1280x1280.jpg)

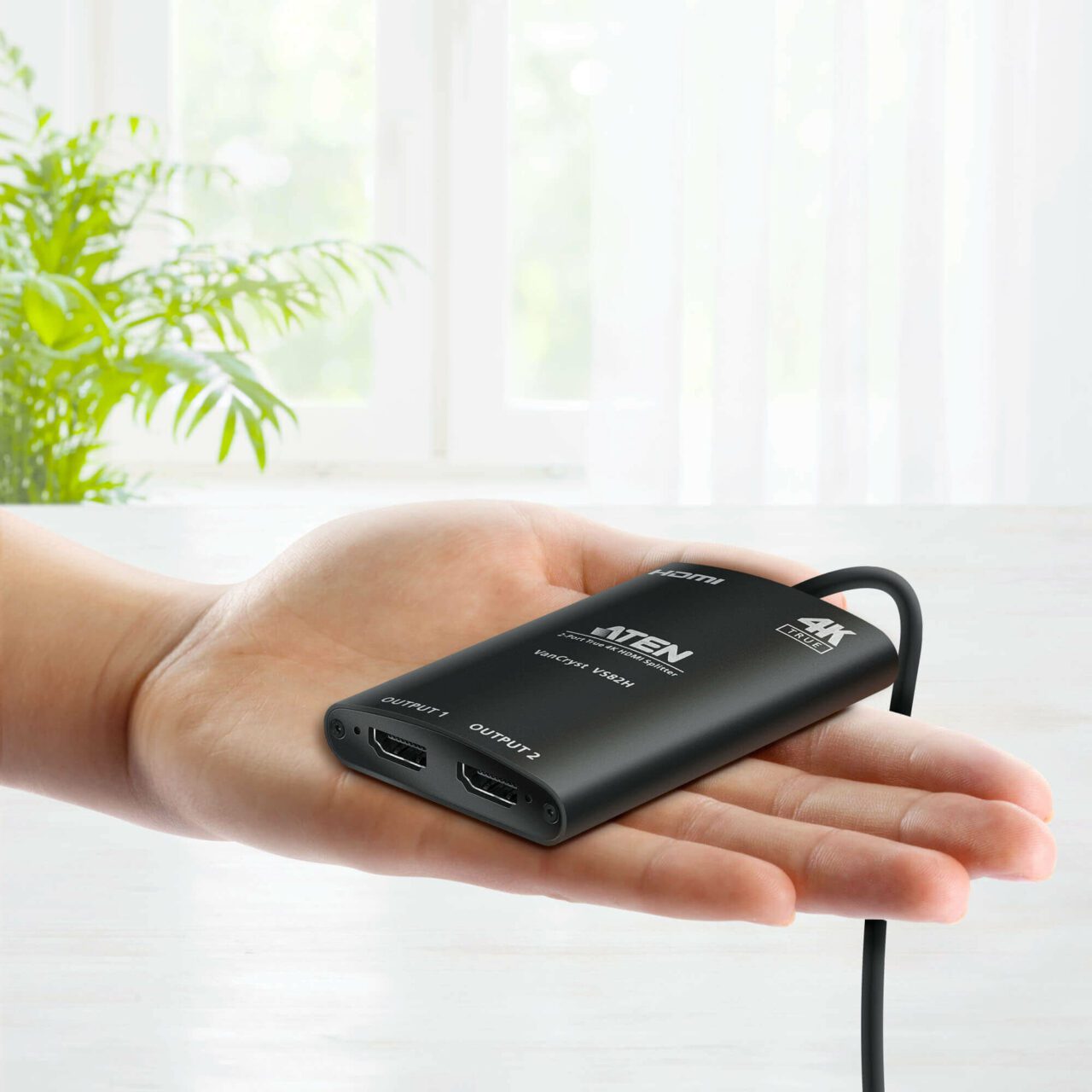

Compact and Robust
Small in size with robust high-quality aluminum housing.

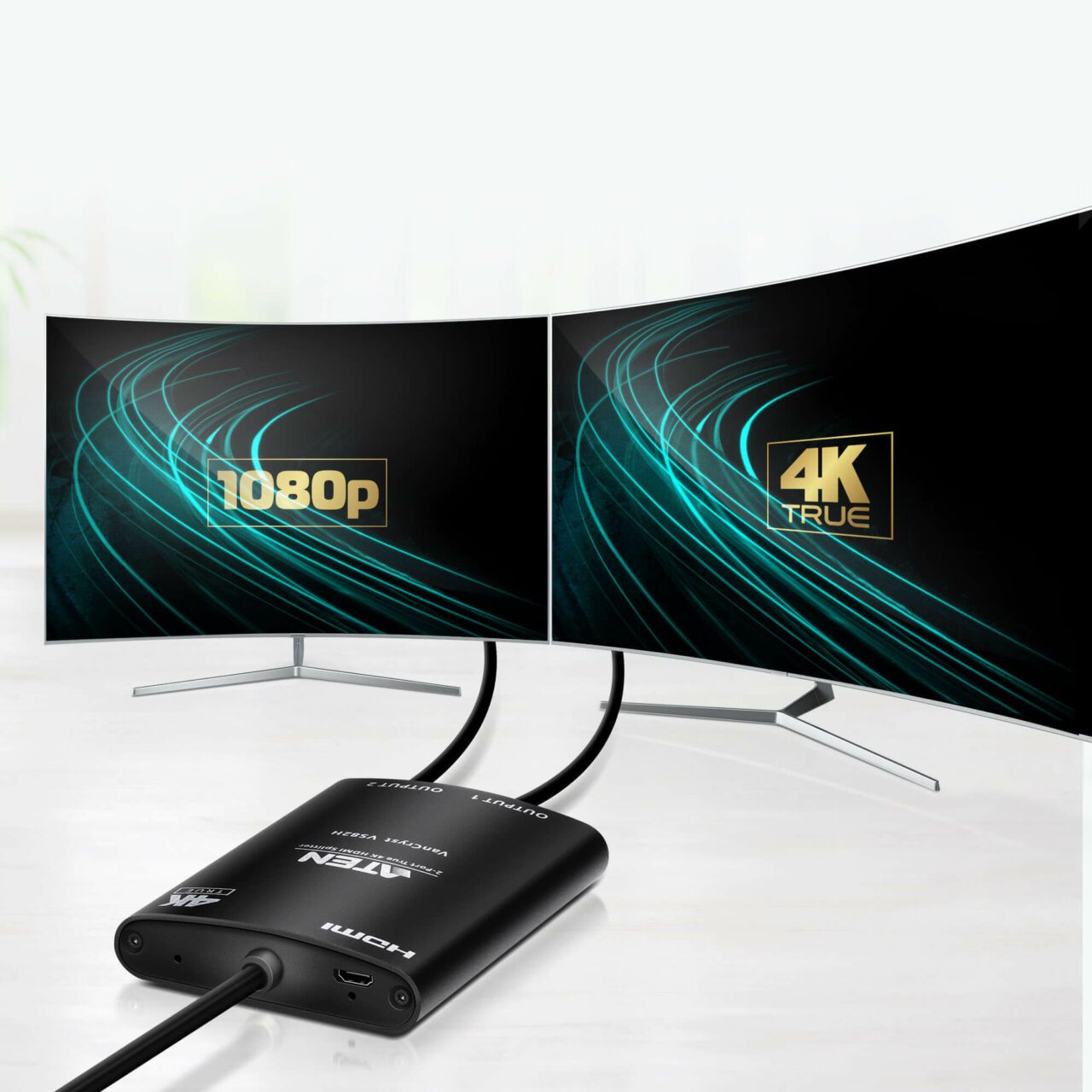

Smooth Video Performance
Enhanced compatibility from source to display for the right resolution every time.
![Aten 2-Port True 4K Hdmi Splitter - Vs82H vs82h.professional audiovideo.video splitters.others 4](https://www.israk.my/wp-content/uploads/vs82h.professional-audiovideo.video-splitters.others_4-1280x1280.jpg)
DIAGRAM
![Aten 2-Port True 4K Hdmi Splitter - Vs82H diagram aten vs82h](https://www.israk.my/wp-content/uploads/diagram-aten-vs82h.png)
Specifications
EDID Settings PORT-1 & Default
LEDs
Status HDMI Output x 2 (Blue)
Power Input x 1 (Blue)
Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 30cm at 4K@60Hz (4:4:4)
Video Output

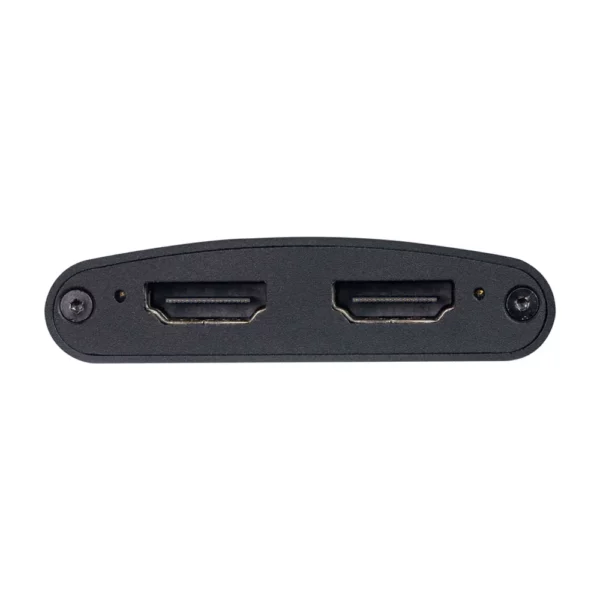

Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5m at 4K@60Hz (4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Power Consumption DC 5V:1.35W:4.6BTU
Connectors
USB Port Micro-USB to USB cable (50cm) X 1
Firmware upgrade & power source
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal (aluminum)
Weight 0.09 kg ( 0.2 lb )
Dimensions (L x W x H) 8.80 x 6.00 x 15.00 cm (3.46 x 2.36 x 5.91 in.)
Carton Lot 40 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x VS82H 2-Port True 4K HDMI Splitter
1x Micro-USB Cable
1x User Instructions
