Floor Standing FLR 103 Super Slim

Vertical Floor-Standing Digital Signage Display

• Full HD Stable Display
• Supports Android/Windows/Linux System
• Supports LAN or WAN Digital Signage Content Management Software
• Diverse Customization
• Optional Touchscreen
• Panel Life Over 50000 hours

Descriptions

digitalsignageFLR103features

Key Features

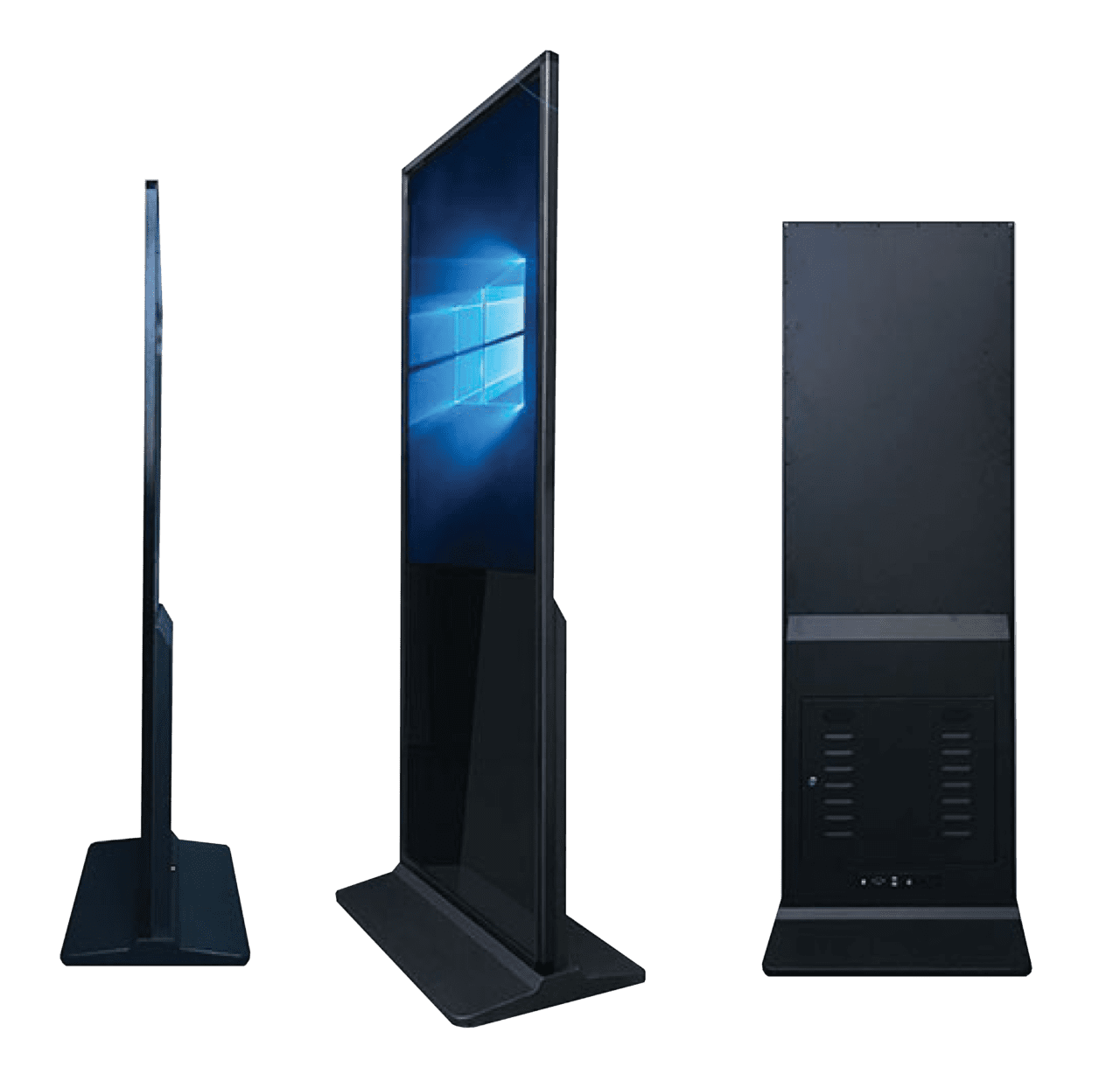

digital signage FLR 103 mainproduct 1

The display kiosk allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful operating system offers users exciting capabilities to deliver rich, engaging content with minimal operational burden required. Beyond a potential for sales and engagement, businesses also benefit from the reduced total operational costs that come with a low-maintenance, hassle-free visual display upgrade.

digital signage FLR 103 structute 49 1

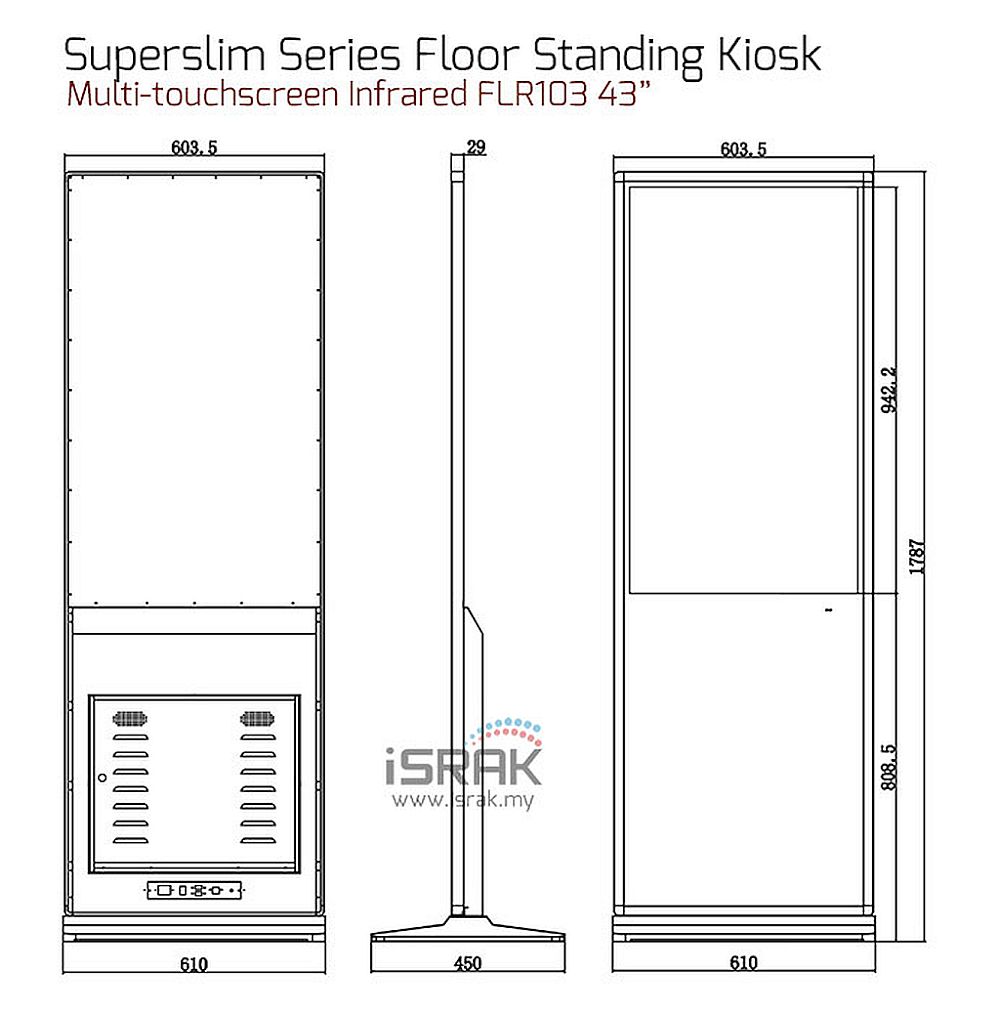

digital signage FLR 103 structute 43

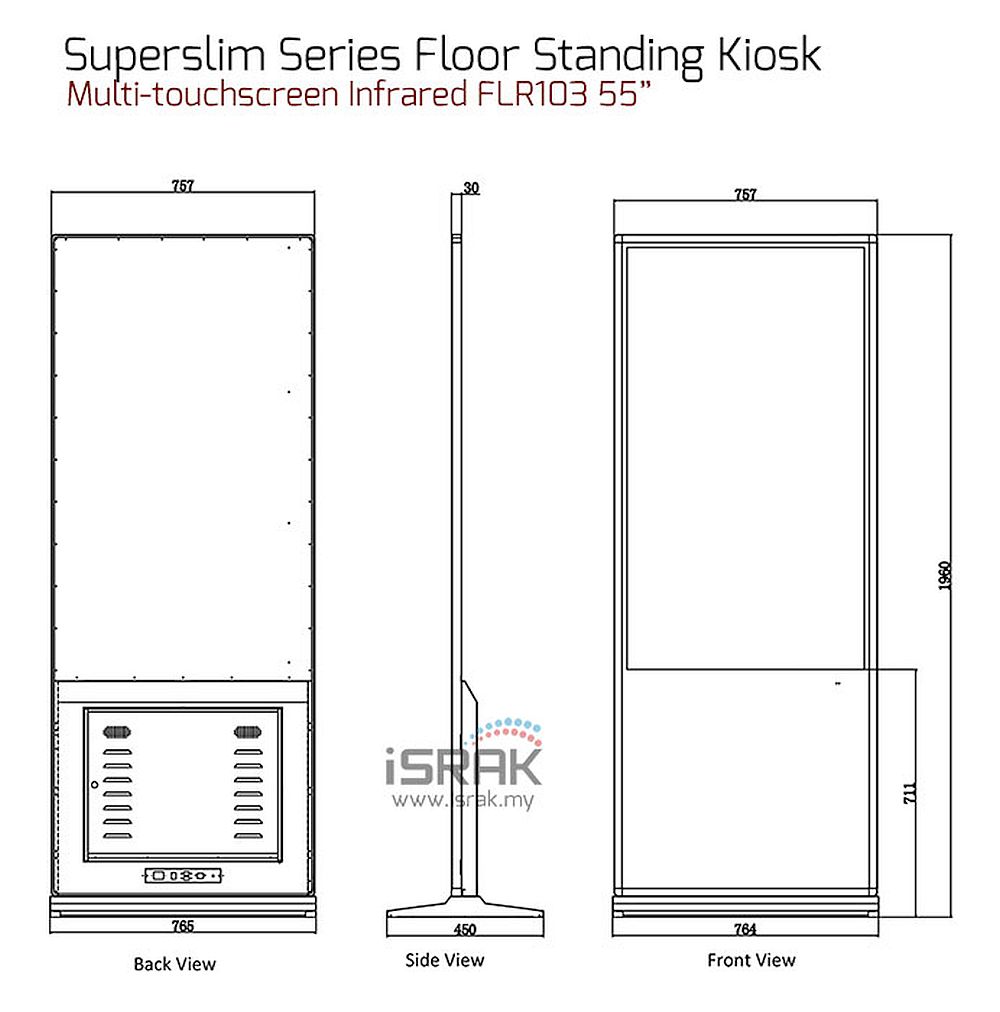

digital-signage-FLR-103-structute-55

Ultra-thin Structure

Stylish super slim appearance with aluminum frame enclosed and built-in tempered glass. It’s true thickness is only 30mm.

Full HD Stable Display

High quality 1920 x 1080 resolution ultra clear LCD Screen high brightness and superior color rendering.

Supports Android/Windows/
Linux System

Support a variety of Android/Windows/Linux devices remote control, edit content synchronization. Update, expand business opportunities. However, our default and preferred OS is Android.

Supports LAN or WAN Digital Signage Content Management Software

Use Free software or simple deployment or upgrade to cloud server-based system for more complicated and advanced feature digital signage system

Diverse Customization

Diverse Customization: Single version / network version ( LAN / WIFI / 3G / 4G ) / touch version, camera / IR / sensing / bluetooth / interactive touch screen and other expansion capabilities, all can be customized according to customer’s specific requirements such as adding corporate logo and color.

Optional Touchscreen

This IPAD Series design offers Projected Capacitive Touch (PCAP) or Touch Foil touchscreen technology for seemless design. IR technology is not applicable in this design.

Specifications

OS
Android 5.1
CPU
RK3288, eight-core ARM Cortex A7 2.0 GHz
Upgradeable to RK3366
GPU
ARM Mail-764
RAM
DDR 2GB (Upgradable to 4GB)
Built-in
storage capacity
8GB (Upgradable to 64GB)
WIFI
WIFI module + WIFI Antenna

Panel Size
43”, 49, 55” real color LCD screen
Aspect Ratio
16:9
Max. Resolution
1920x 1080
Dot Pitch
0.74mm(H) x 0.74mm(W)
Number of Color
16.7M
Brightness
450cd/m2
Contrast Ratio
3000:1
Touch Technology
Projective Capacitive Touch, Infrared Touch
Responsive Time
5ms
Panel Life
above 50000 hours

Video formats
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2),
MPEG1 (VCD: DAT/MPG1)
Audio formats
MP3
Photo formats
JPG
Scrolling Text
ROL(UNICODE)
Input/output
interface
USB,HDMI,VGA,RJ45

Shell Material
Metal shell + Aluminum Alloy frame + toughened
glass
Surface
Metal case with powder burning;
Tempered glass to protect
LCD panel
Speaker
2*10W built-in stereo speakers
Heat Dispersion
Built-in DC fans

Power

Standby
≤3W
Working
30W-180W
Power supply
AC 110V - 240V, 50/60HZ

Temperature

  • Storage
  • 7 to 65 Celsius degree
  • Normal Working
  • 5 to 65 Celsius degree

OSD Language

English, Chinese, French, German, Italian, Spanish, Arabic
