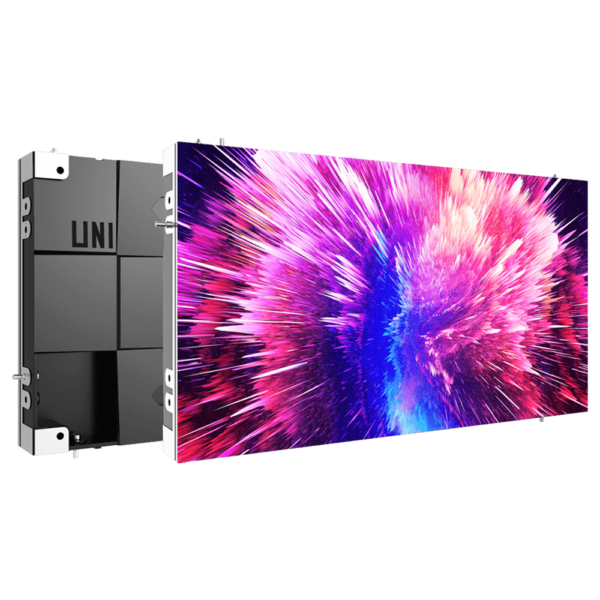

LED Display - UHWII Series

Fine Pitch with Commercial-Grade Feature

Descriptions

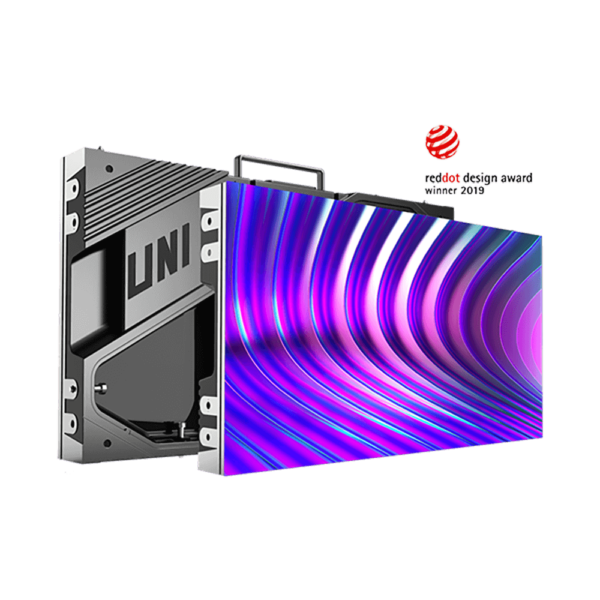

led display uhwii series cover
Play Video

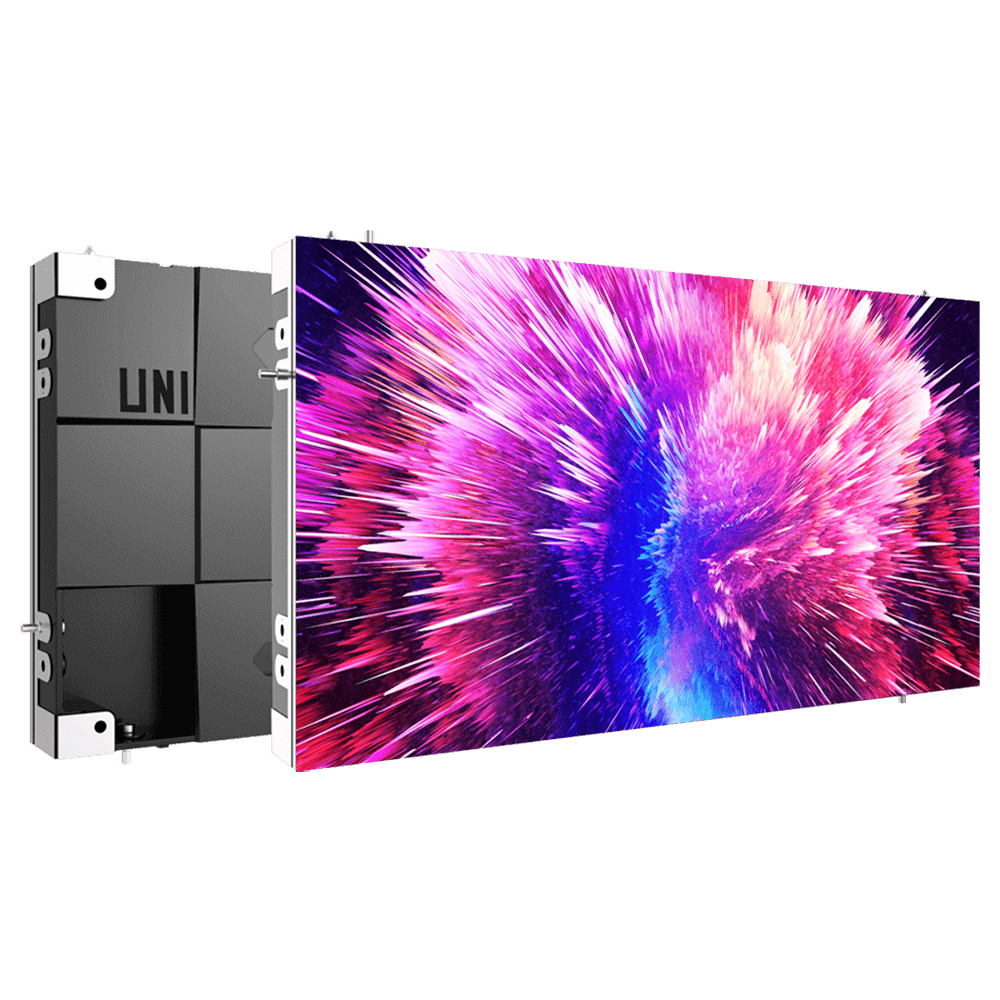

UHWⅡ

Semi-automatic installation structure – specially designed tool achieves efficient installation and high flatness Hermetically sealed structure – good heat dissipation High protection of IP60 – robust and durable under all conditions Single person handling maintenance – modules, power supplies and internal cables are accessible from the front

Key Features

Application scenario

led display uhwii series 08

Corporate

led display uhwii series 09

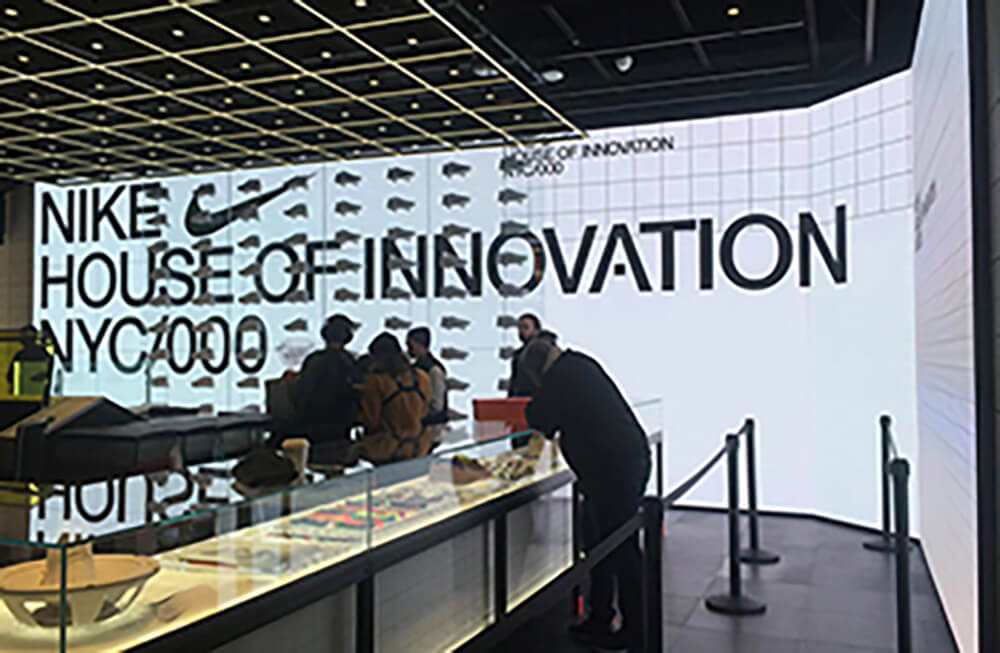

Retail & Shopping Mall

led display uhwii series 010

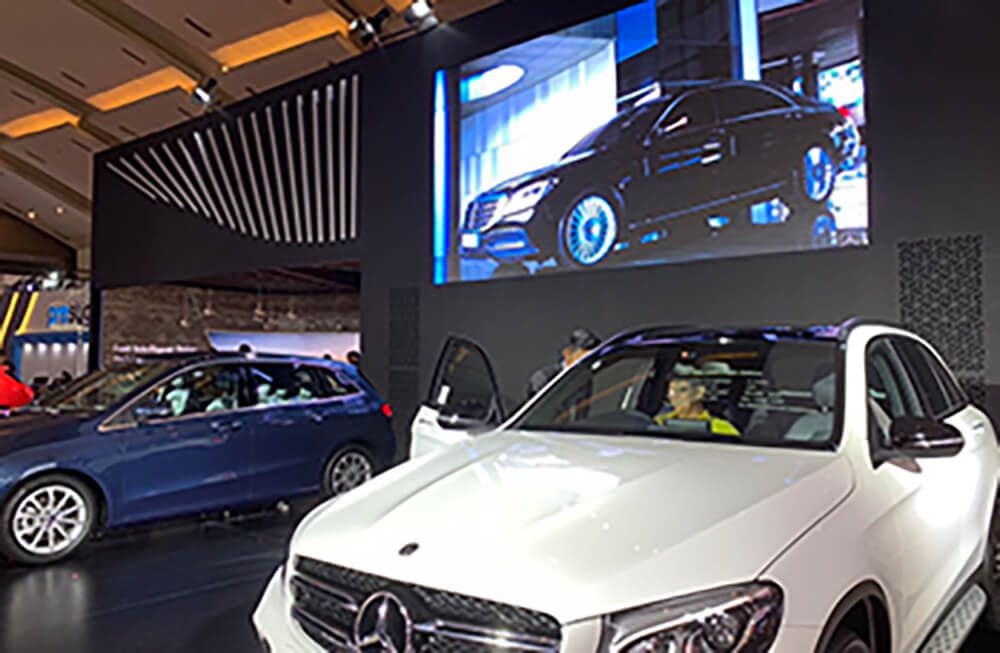

Showroom

led display uhwii series 06

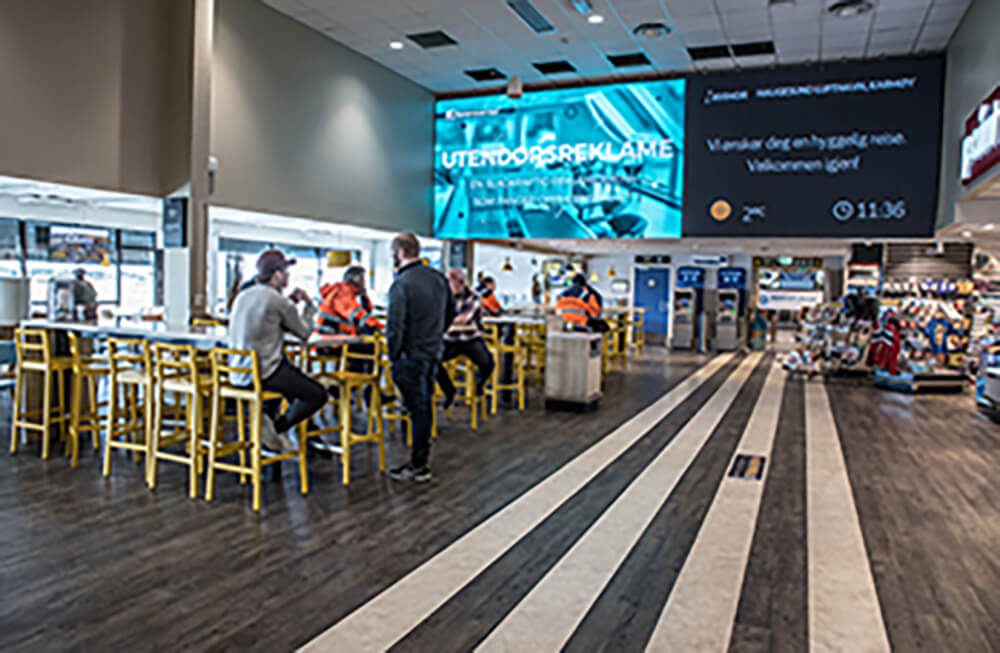

Airport

led display uhwii series 074new

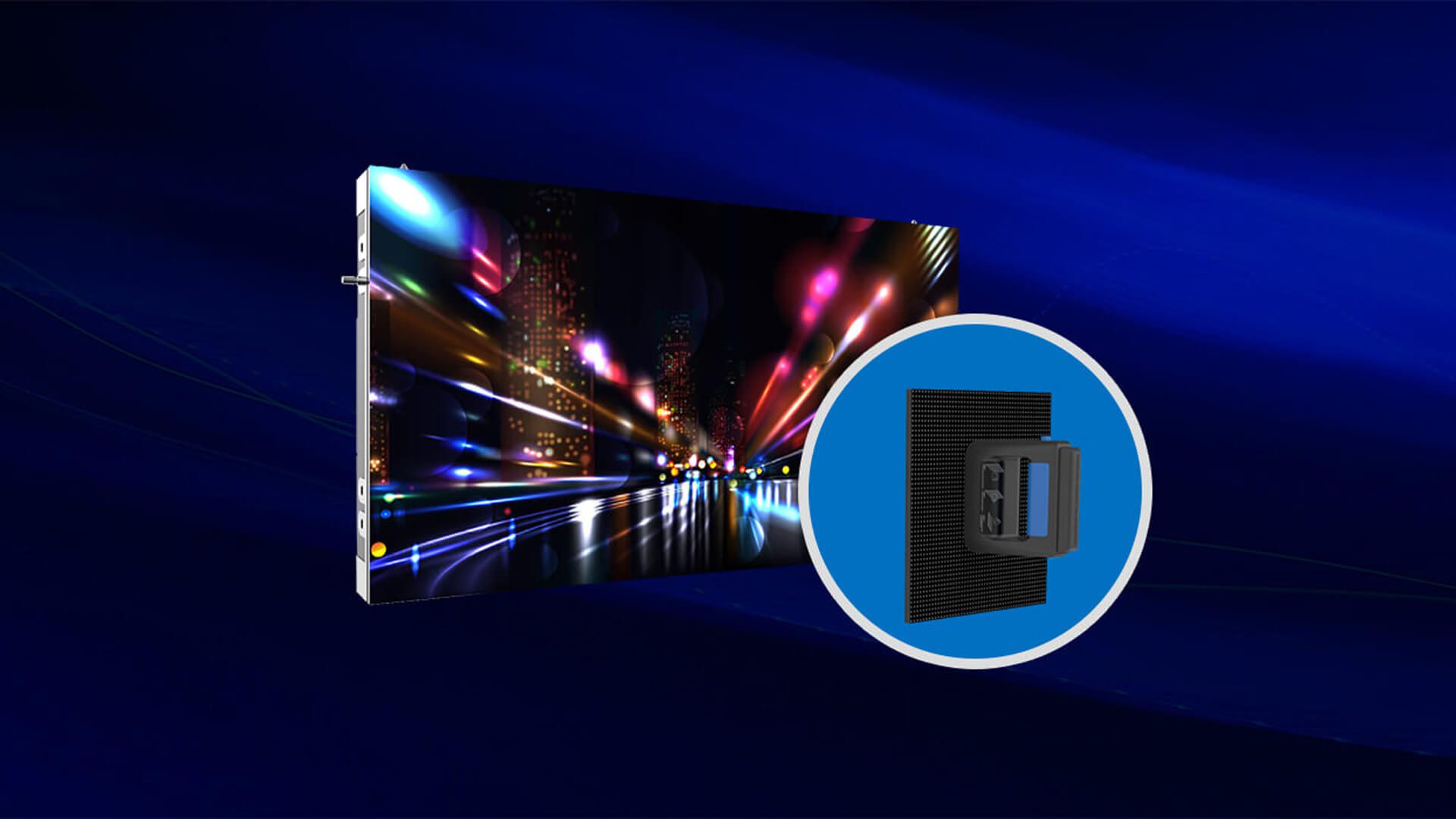

Semi-Automatic Installation Structure

Specially designed tools to ensure the installation efficiency and high flatness of the screen

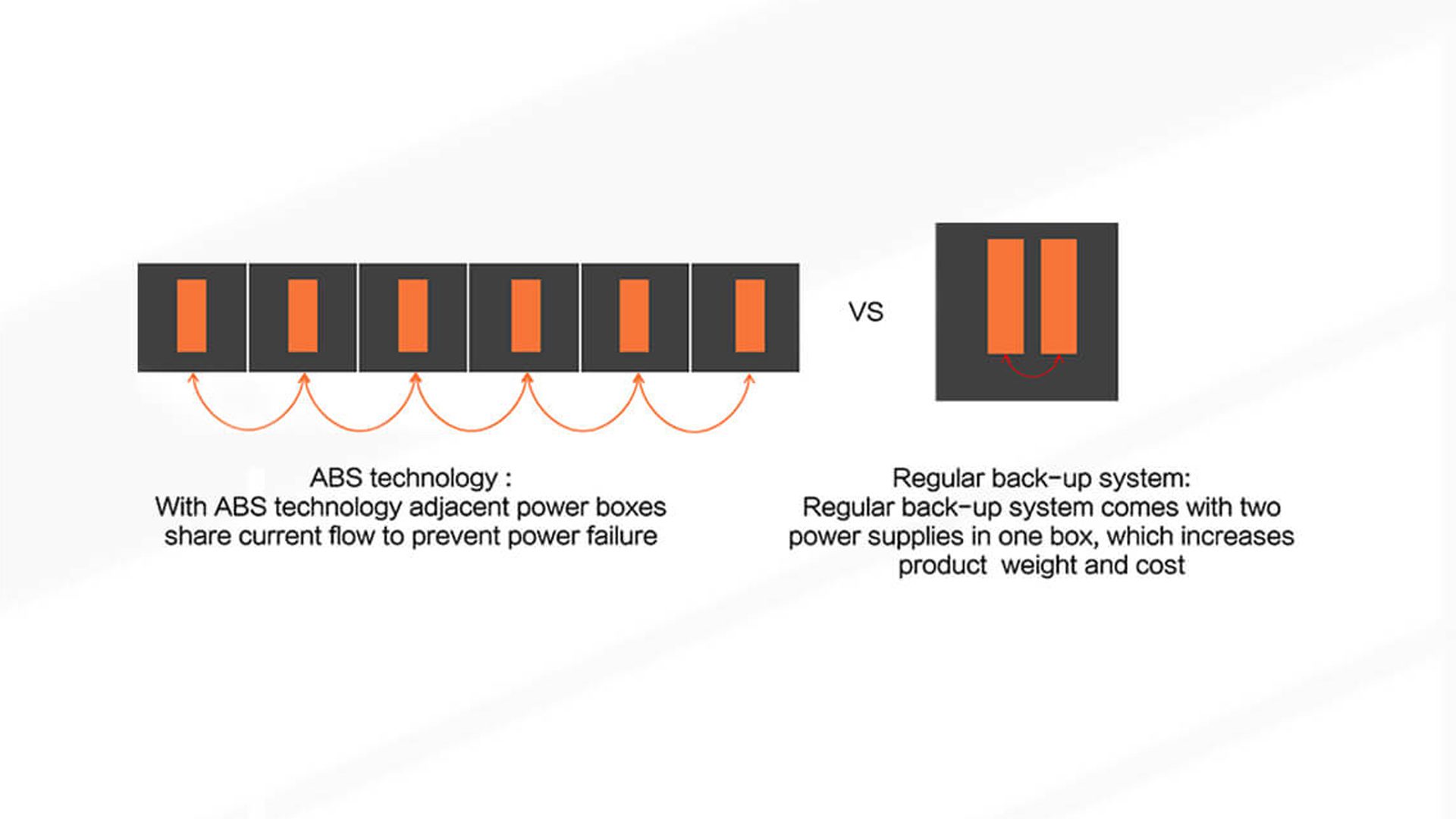

ABS Technology

led display uhwii series 04new
led display uhwii series 05new

High Protection- IP60

High protection IP60 enables UHWII LED Display to meet the requirements for use in harsh environments.

Heat Dissipating Modular Design

By applying hermetically sealed structure, UHWⅡ LED Display achieved highly efficient heat dissipation function

led display uhwii series 075new
led display uhwii series 07new

Single Person Handling Maintenance

Modules, power supplies and internal cables are accessible from the front, which makes installation and maintenance easy for one person.

Specifications

PANEL

Pixel Pitch 2.54mm

LED Type 3-in-1 SMD

LED Configuration 1Red, 1Green, 1Blue

Brightness 800cd/m²

Pixels Per Panel 240×135 Dots

Pixel Density 155,000 pixels/m²

Recommended Viewing Distance ≥2.5 m

Video Frame Rate 50/60 Hz

Rate Refresh 1920 Hz

Input Voltage 100~240VAC

Input Power Frequency 50~60 Hz

Curve Inner 0°~+7°

Gap Between Modules Seamless

Horizontal Viewing Angle 140°

Vertical Viewing Angle 140°

Color Temperature 2000-9500K Adjustable

Colors 4.4 Trillion

Brightness Control Manual/Automatic

LED Life Time ≥50,000 Hours

LED Wavelength R:620~630nm G:520~535nm B:465~475nm

Ingress Protection IP60

Maintenance Front service of module, system card, power supply

Driving Method Constant Current Drive

Calibration Support brightness and chroma

Acoustic Noise Fanless operation

Standard Mounting Configuration Fixed

Optional Mounting Configuration Wall-mounting , Concave(recommend rear installation)

Professional Services Design, configuration, install and service available

Power Status Diagnostic LEDs

Video Signal Redundancy Optional

Video Extension Redundancy Optional

Data Interconnection Network Cable ( L≤100m ); multi-mode fiber ( L≤300m ); single mode fiber ( L≤15km )



CONNECTIVITY

Input Signal DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc



ENVIRONMENT CONDITIONS

Environment Indoor

Operating Temperature/Humidity -10℃~+45℃/10~80%RH

Storage Temperature/Humidity -20℃~+55℃/10~85%RH



POWER

Input Power  120W/panel

Input Power  40W/panel

Weight 7 kg/panel

Module Size W152.48mm×H343.08mm Cabinet Size W609.92mm×H343.08mm×D68mm

Cabinet Diagonal 27.5’’(699.79mm)

Aspect Ratio 16:9

Area 0.209 m²

Planeness ≤0.15mm

Material Die-casting Aluminum
