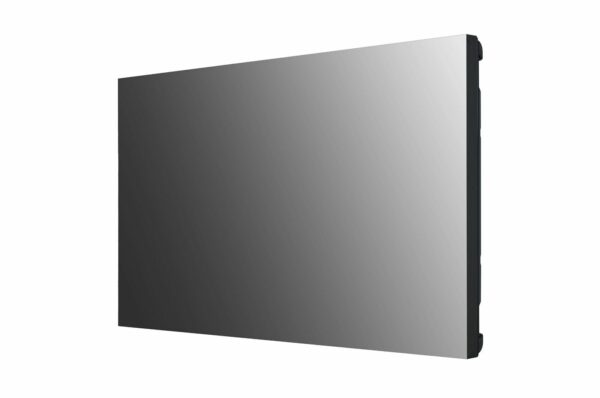

LG SVH7E Series

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ RGB/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Brand :
Download Brochure
Add to Cart
LG SVH7E Series
LG SVH7E Series - Image 2
LG SVH7E Series - Image 3
LG SVH7E Series - Image 4
LG SVH7E Series - Image 5
LG SVH7E Series - Image 6
LG SVH7E Series - Image 7
LG SVH7E Series - Image 8
LG SVH7E Series - Image 9
LG SVH7E Series - Image 10
LG SVH7E Series - Image 11

Descriptions

ZERO. VIDEO WALL

LG has finally introduced the world’s first* slim bezel under 1 mm, the 0.44 mm even bezel. Instead of contrasting the reduced bezel size with previous bezels, LG’s 55SVH7E highlights the similarity of its display with the bezel-less ‘original’ picture.

Key Features

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions.
razor thin bezell video wall displays lg svh7e series 002
razor thin bezell video wall displays lg svh7e series 003

Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7E is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7E captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
ultra narrow bezel video wall displays lg vl5f series 015
razor thin bezell video wall displays lg svh7e series 005

* Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

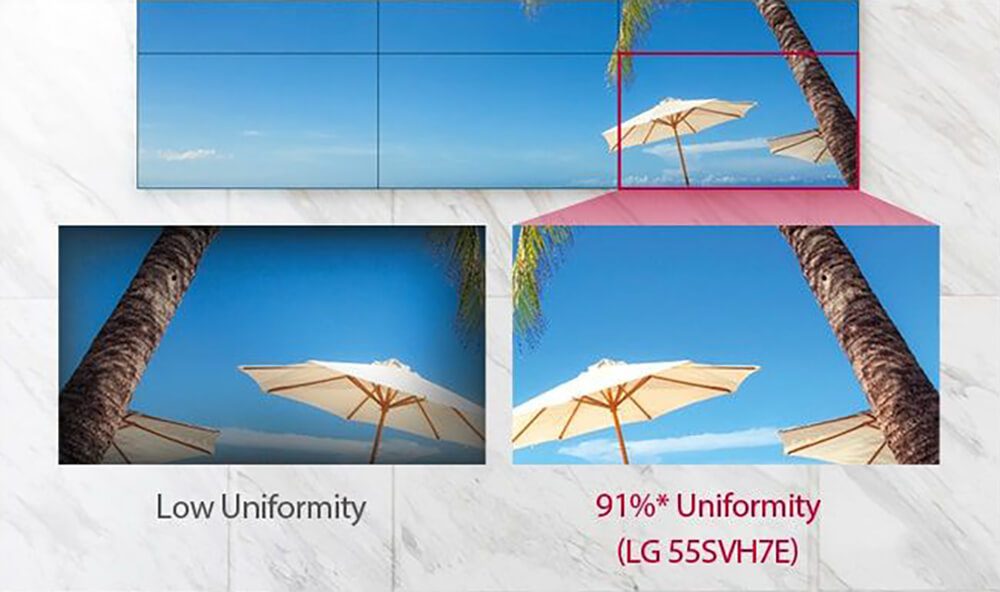

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the 55SVH7E has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Vivid and Dynamic Picture Quality

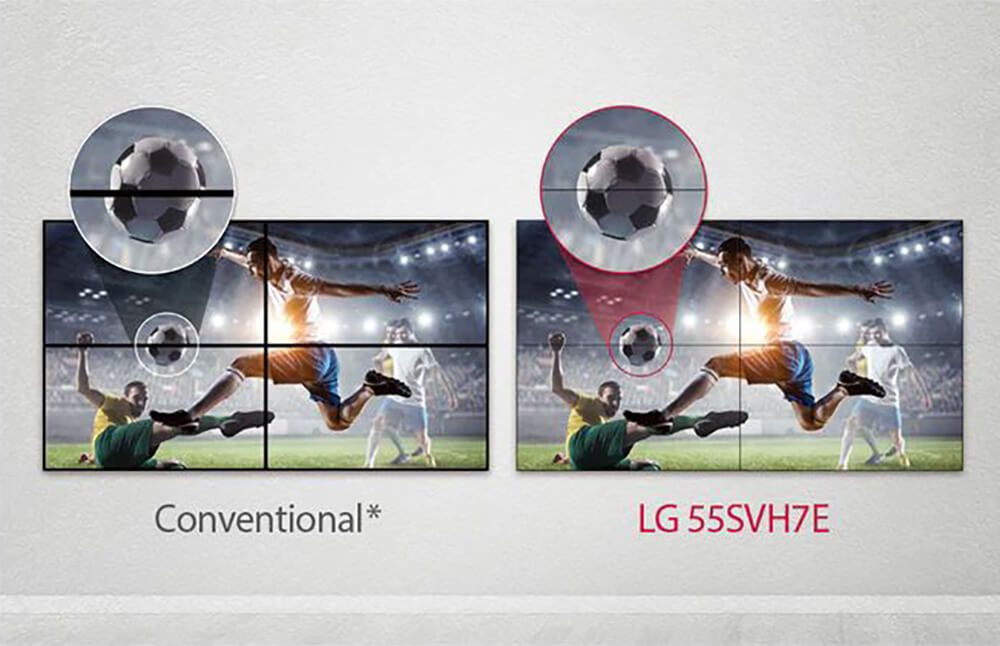

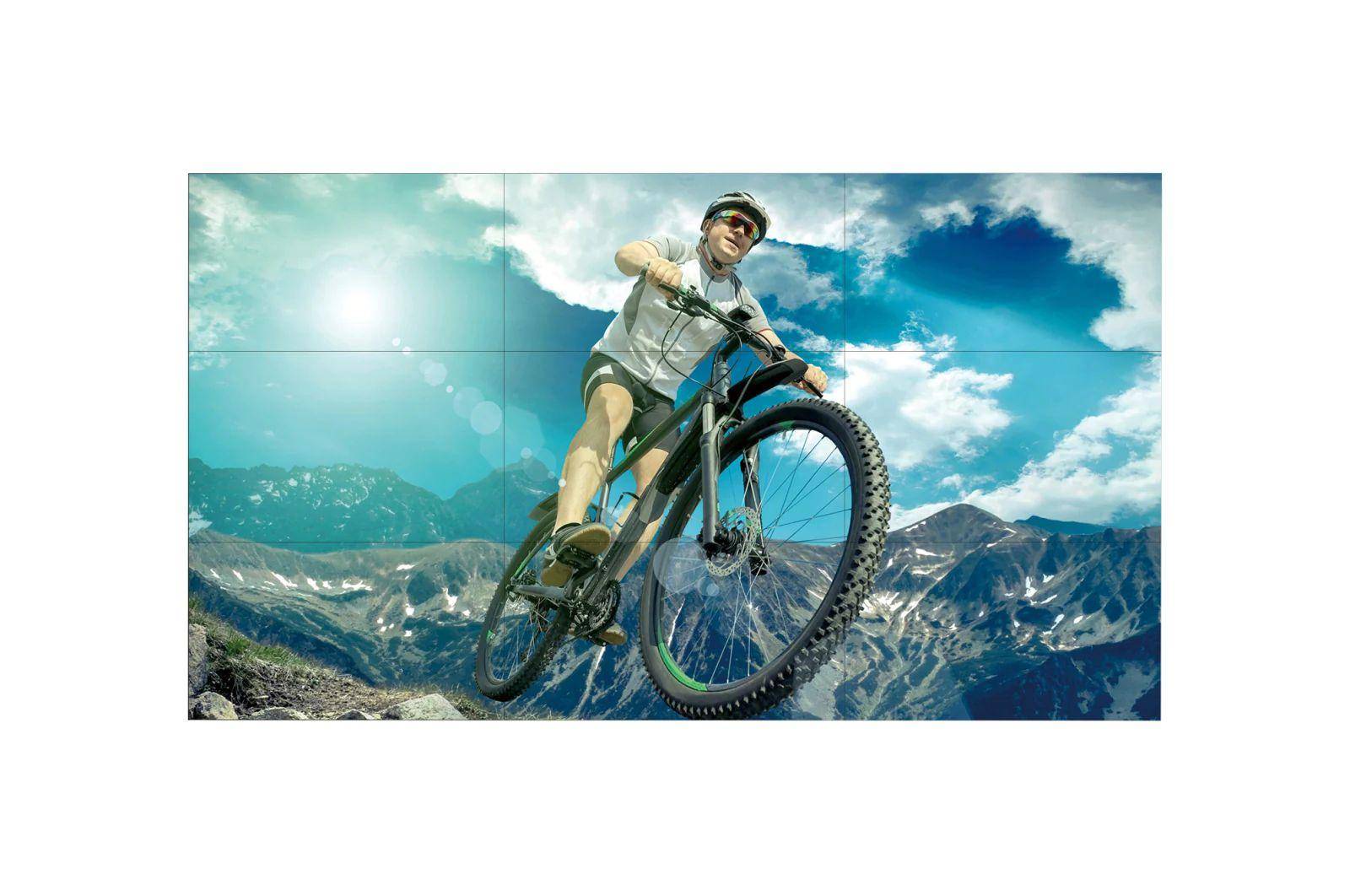

Image Gap Reduction

The 55SVH7E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
razor thin bezell video wall displays lg svh7e series 006
* The “Conventional” refers to displays which do not include an image improvement algorithm.
razor thin bezell video wall displays lg svh7e series 007

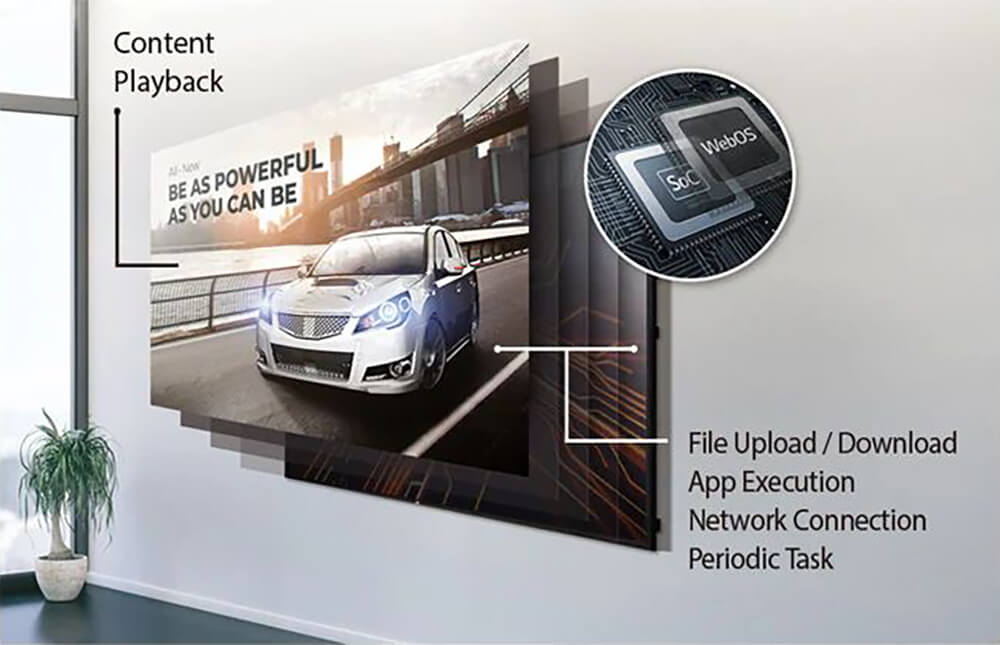

Powerful Smart Signage Platform

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Soft Development Kit), it is even easier for SIs to build and optimize.

razor thin bezell video wall displays lg svh7e series 008

User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

User-Friendly Smart Signage UX

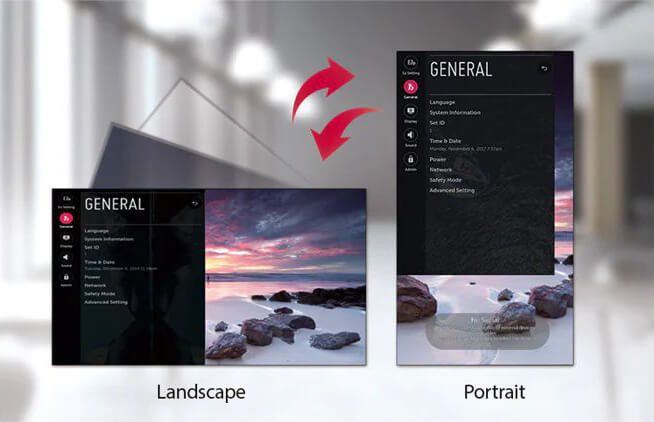

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio.

razor thin bezell video wall displays lg svh7e series 009
razor thin bezell video wall displays lg svh7e series 010

User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

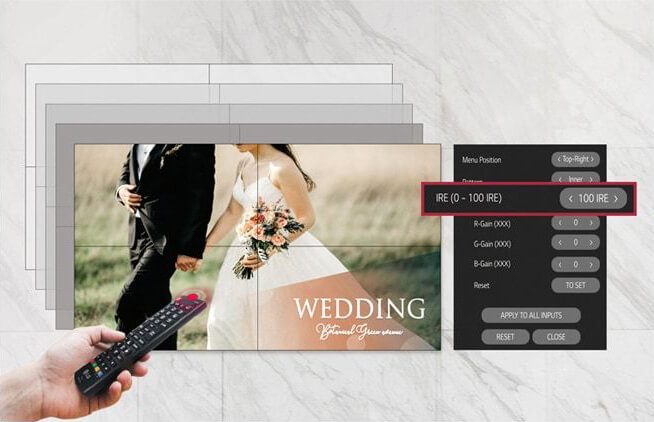

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

razor thin bezell video wall displays lg svh7e series 011
razor thin bezell video wall displays lg svh7e series 012

User Convenience

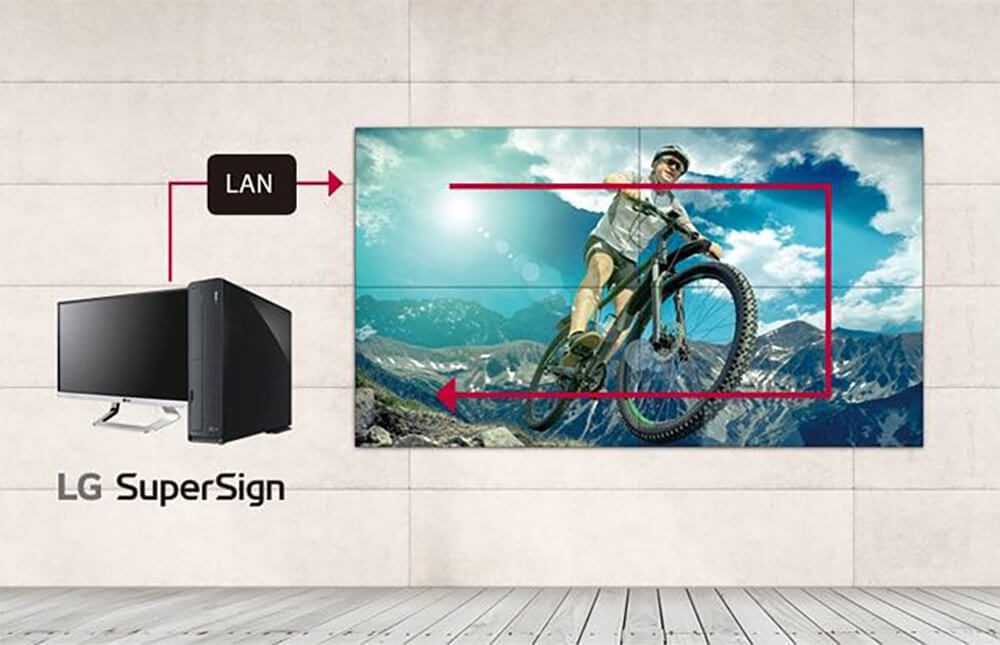

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

User Convenience

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
* The “Conventional” refers to displays which do not include an image improvement algorithm.
razor thin bezell video wall displays lg svh7e series 013

Specifications

PANEL

Screen Size 55"

Resolution 1,920 x 1,080 (FHD)

Brightness(Typ.,cd/m²) 700



CONNECTIVITY

Input HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0

Output DP, Audio

External Control RS232C In/out, RJ45 In/out, IR In



ENVIRONMENT CONDITION

Operation Temperature 0°C to 40°C

Operation Humidity 10 % to 80 %



POWER

Power Supply 100-240V~, 50/60Hz

Power Type Built-In Power



POWER CONSUMPTION

Typ. 170 W

Max 220 W



STANDARD (CERTIFICATION)

Safety CB / NRTL

EMC FCC Class "A" / CE / KC

ErP / Energy Star Yes (EU Only) / No



Bezel Width 0.44 mm (Even)

Monitor Dimension (W × H × D) 1,210.51 x 681.22 x 86.5 mm

Weight (Head) 16.8 kg

Carton Dimensions (W × H × D) 1,353.0 x 855.0 x 263.0 mm

Packed Weight 23.6 kg

VESA™  Standard Mount Interface 600 x 400 mm

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes (Piggyback)



SOFTWARE COMPATIBILITY

Content Management Software SuperSign CMS

Control and Monitoring Software SuperSign Control / Control+

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSA)
