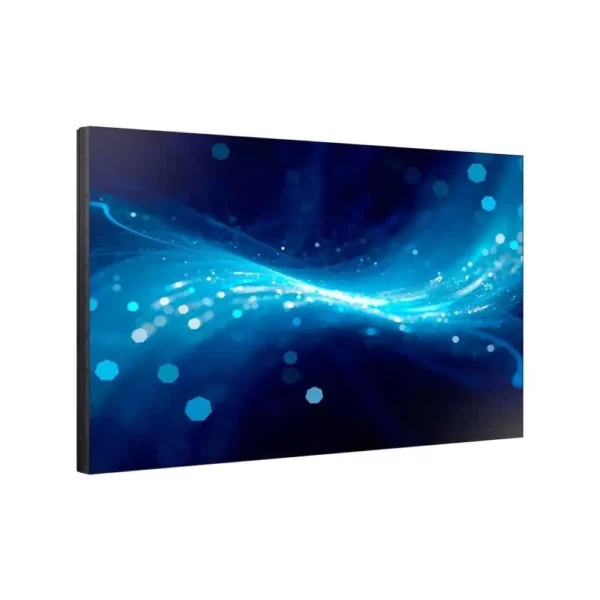

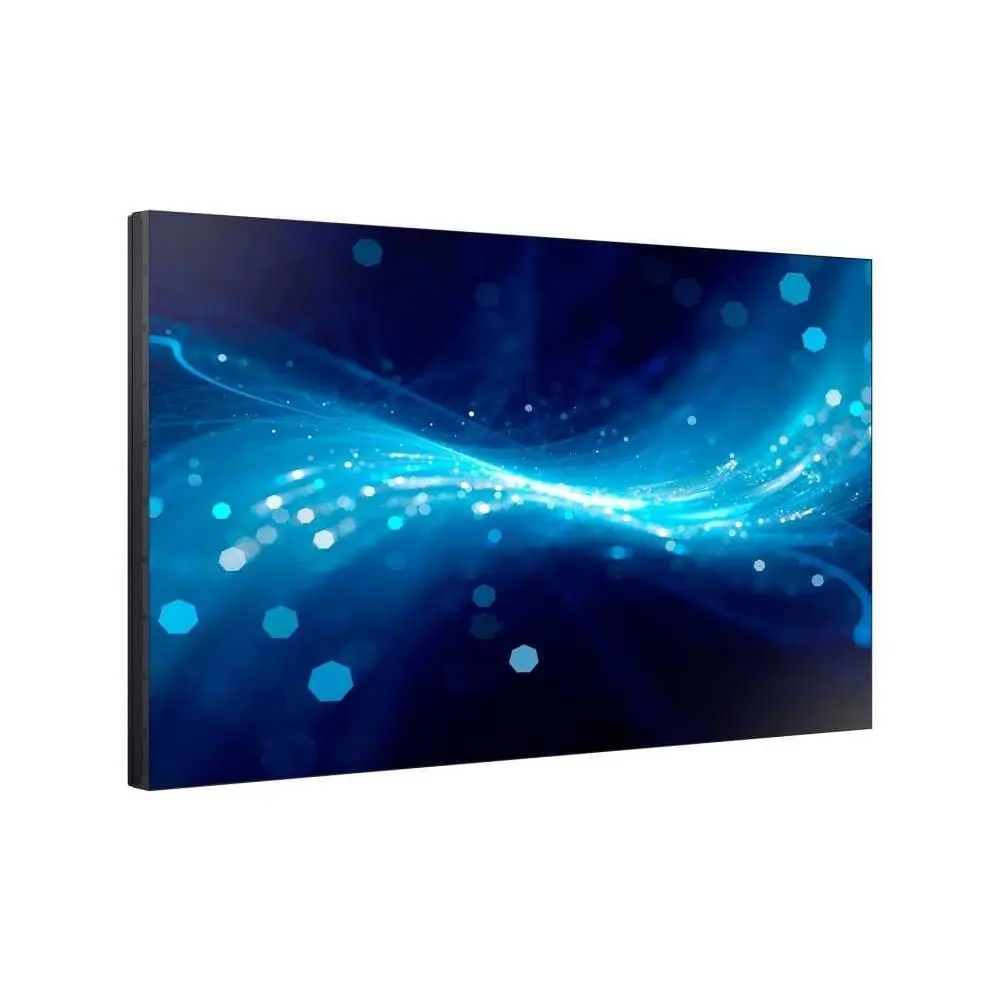

SAMSUNG VIDEOWALL UHN-E Series

Videowall

Premium video wall displays featuring deeper visual impact and thinner bezel to bezel width of 1.7mm.

– Extremely narrow bezel (B-to-B 1.7mm) for a virtually seamless, life-like viewing experience
– Superb color accuracy and brightness uniformity thanks to precise calibration and panel technology
– Daisy Chain through use of DisplayPort (DP) 1.2 or HDMI port, eliminating the need for graphic cards
– Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount

Description

DESCRIPTIONS

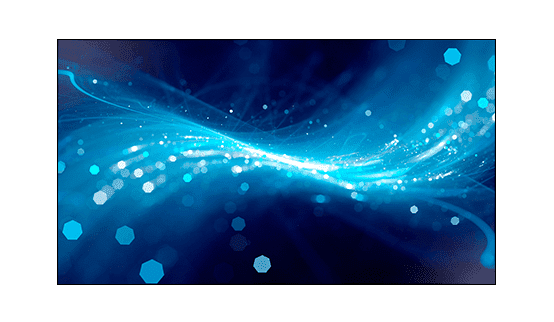

Razo Extreme Narrow Bezel samsung UHN E Series 018

UHN-E Series

KEY FEATURES

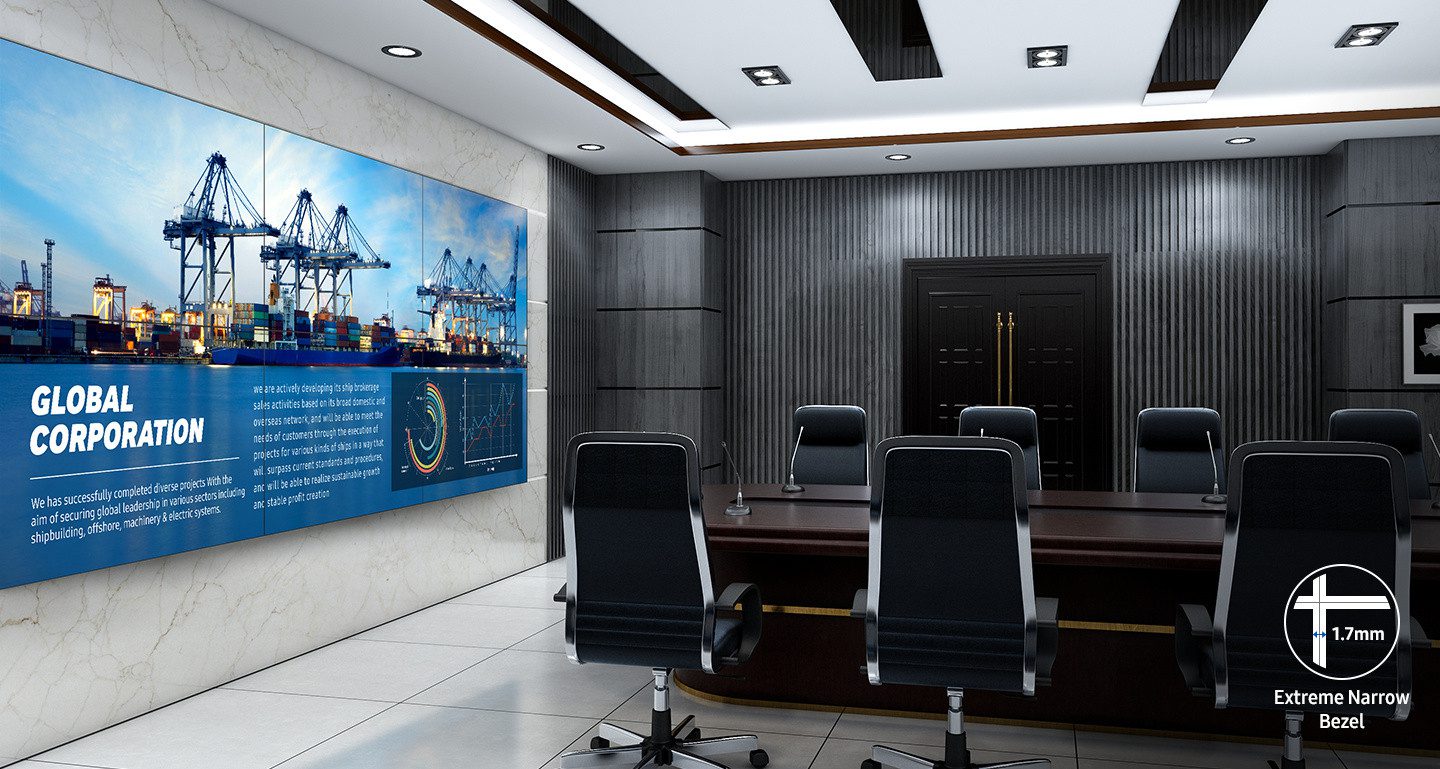

DELIVER DEEPER VISUAL IMPACT​

Samsung’s narrow bezel video wall features bezel–to-bezel width of 1.7mm that minimizes the visual distraction of video walls to elicit impacting imagery of products. The display produces a near-seamless picture across multiple screens without interruption, captivating and impressing customers.

Razo Extreme Narrow Bezel samsung UHN E Series 021

Amplify image clarity in any environment ​

Combined with a non-glare panel, the extreme narrow bezel video wall display is designed to help businesses create memorable content presentation even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy.

uhn e 02

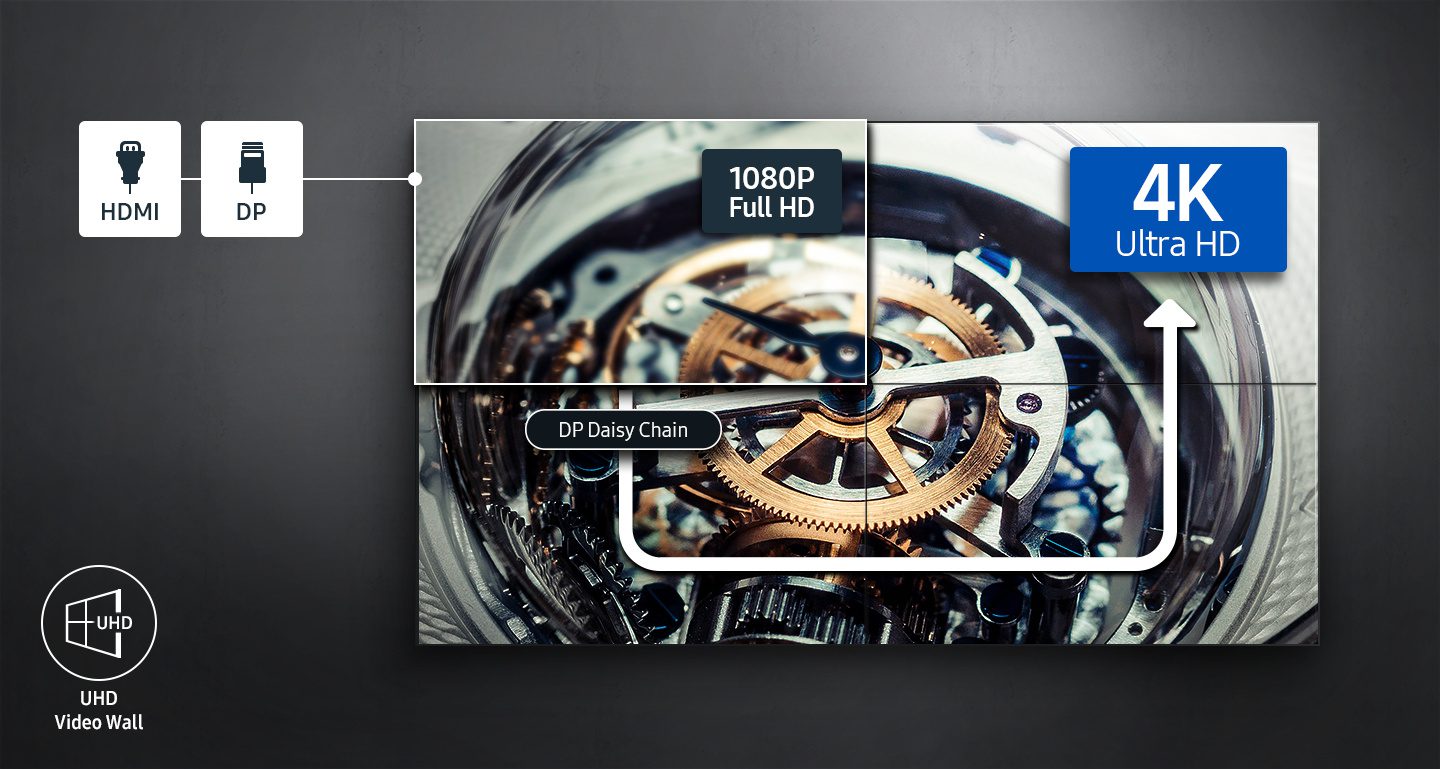

Extend content presentation capabilities

Samsung’s video wall offers a powerful UHD viewing experience with minimal effort or additional equipment. As the first in the industry to have up to 5×5 wall configuration based on the use of DisplayPort 1.2 and HDMI ports, the display can project UHD content across multiple screens simultaneously.

uhn e 03

Share accurate and uniform content

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung’s Color Expert Pro, a powerful free software program.

uhn e 04

Cost saving mobile calibration with ease

Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5×5 video wall’s white balance simultaneously without the need for additional equipment.
uhn e 05

* Some of the models may require the use of additional PC and Color Expert Pro software to calibrate the screens.

Enjoy continuous, long-term performance

Samsung’s extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure.
uhn e 06

Reliable content delivery for business

Designed to maintain performance in various indoor environment conditions, Samsung’s video wall produces an engaging viewing experience with the elevated contrast ratios and brightness. With continuous 24/7 operations, the display enables vivid and reliable content delivery for every business need.
uhn e 07

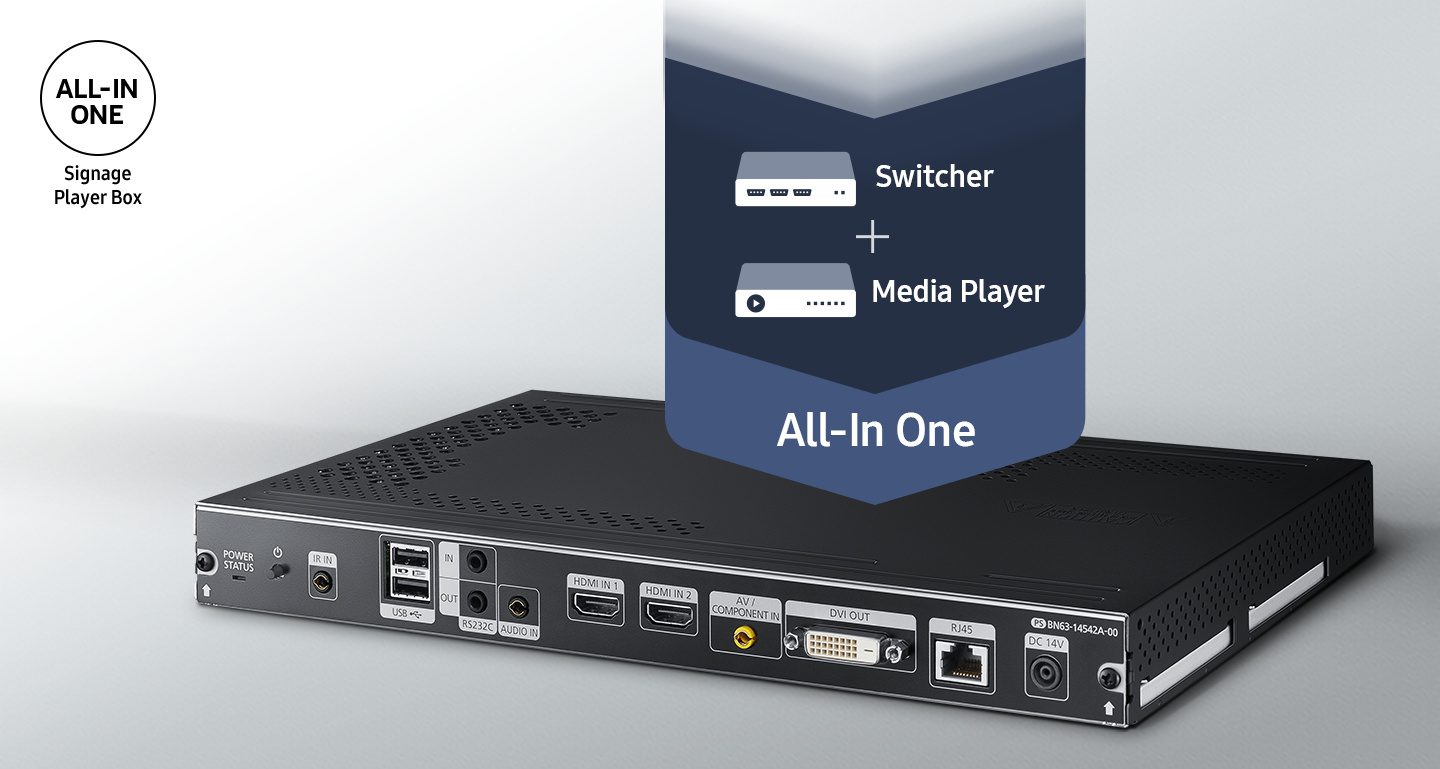

All-in-one box with versatile usability

Backed by a Quad Core CPU, Signage Player Box allows for multi-source switching and a media player to coexist in a single box. Leveraging the embedded Samsung SMART Signage Platform, the box transforms video walls for faster information processing and easy content management with MagicINFO solution.
uhn e 08

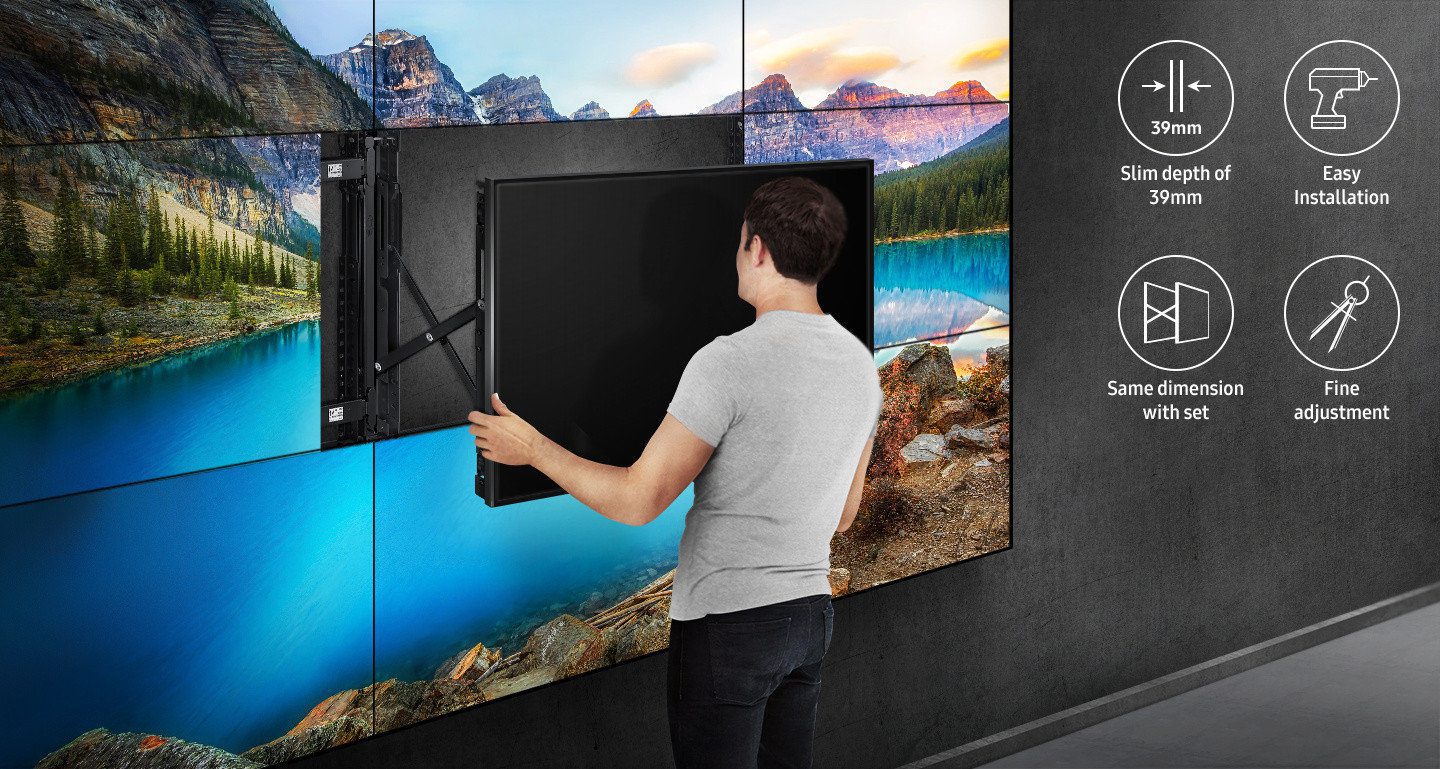

Highly configurable wall mounts

The user-friendly special wall mounts ensure easy installation of video walls through minimal steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit into the video wall, eliminating tedious efforts to measure and adjust the wall mount size.
uhn e 09

SPECIFICATIONS

Panel

Diagonal Size46
TypeD-LED DID
Resolution1920*1080 (Full HD)
Pixel Pitch(mm)0.53025mm(H) * 0.53025mm(V)
Active Display Area(mm)1018.08mm * 572.67mm
Brightness(Typ.)700 nit
Contrast Ratio4000:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)8ms
Display Colors8 bit - 16.7M
Color Gamut72%
Operation Hour24/7
Haze25% (Outer Haze 23%)

Display

Dynamic C/RMEGA DCR
H-Scanning Frequency30kHz ~ 81kHz
V-Scanning Frequency48Hz ~ 75Hz
Maximum Pixel Frequency148.5MHz

Connectivity

Input
RGBAnalog D-SUB, DVI-D, Display Port 1.2
VideoHDMI 2.0 (2)
HDCPHDCP 2.2
AudioStereo mini Jack
USBOnly F/W upgrade
Output
RGBDP1.2(Loop-out)
AudioStereo mini Jack

External ControlRS232C(in/out), RJ45
External SensorDetachable type(IR, Ambient)

Power

TypeInternal
Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]187
Typical[W/h]102
BTU(Max)638
Sleep modeless than 0.5W
Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
Set1020.0 X 574.6 X 96.3
Package1153 X 719 X 295
Weight (kg)
Set15.7kg
Package21.6kg
VESA Mount (mm)600 * 400 (mm)
Bezel Width (mm)1.15mm(U/L), 0.55mm(R/B)

Feature

Key FeaturesExtreme Narrow Bezel
OrientationN/A
Remote ControlN/A
Special FeaturesACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)
Internal PlayerProcessorN/A
On-Chip Cache MemoryN/A
Clock SpeedN/A
Main Memory InterfaceN/A
GraphicsN/A
Storage (FDM)N/A
MultimediaN/A
IO PortsN/A
Operating SystemN/A

Certification

SafetyUL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
EMCFCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012

Accessory

IncludedQuick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
Optional
StandN/A
MountWMN-46VD
SpecialtyN/A

Media Player

Media PlayerSBB(Slide In), Signage player box
