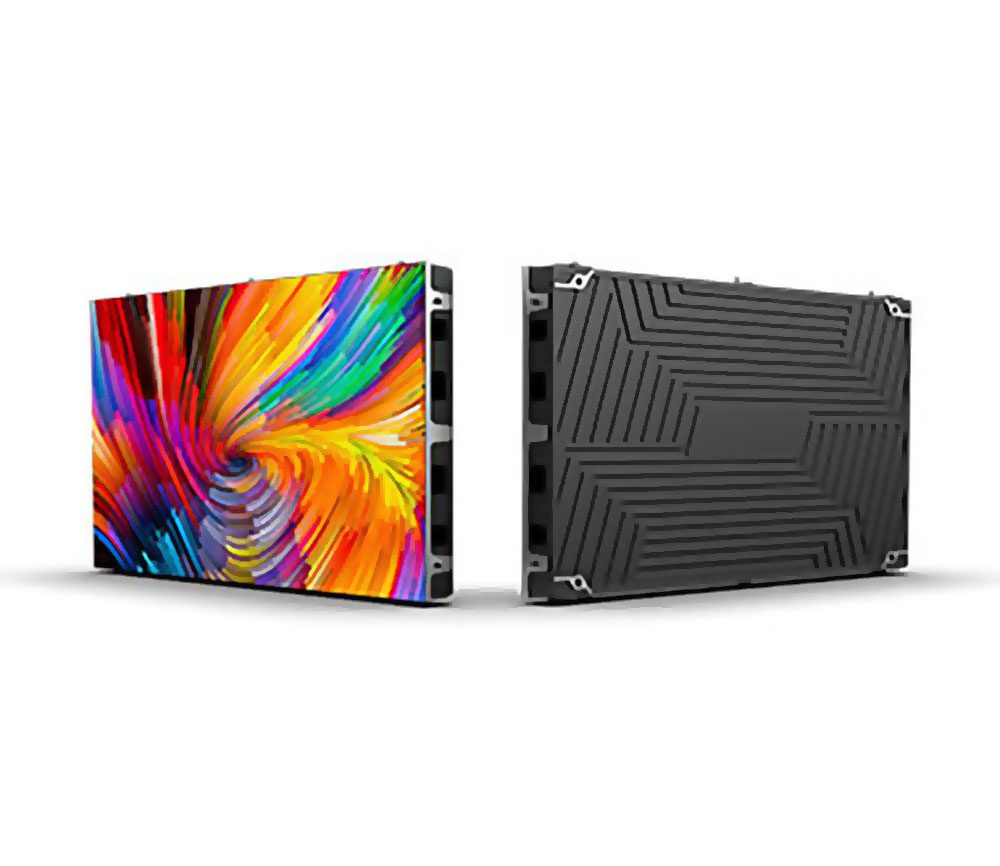

Bako LED DISPLAY – HD Pro

LED Screen

– Pixel pitch: 0.93/1.25/1.56/1.87/2.5 mm
– Refresh rate: ≥3840
– Box size: 600×337.5
– Ultra-thin & Super Light, Aesthetic and minimalist design
– Asymmetric aesthetic design
– Full front maintenance
– Seamless splicing screen
– Excellent visual effect

Tag: Arvia

Description

Descriptions

BAKO LED DISPLAY

HD PRO

Seamless splicing screen, Excellent visual effect

Key Features

Ultra-thin & Super Light, Aesthetic and minimalist design

Singlecabinet weight is 6KG, thickness only 47mm Module multi-position magnetic, the vertical/horizontal viewing angle reaches 160° Configure high refresh IC reaches 3840Hz, gray level reaches 16bit, display screen is delicate and realistic Nationstar&Kinglight high quality lamp, safe and reliable brand power, circuit board ensures a low failure rate Asymmetric aesthetic design

Power and signal redundancy

Our LED Display are using cabinet and PCB board with power supply and receiving Card dual redundancy, when one PSU fails, another PSU backs it up, the same operation to the receiving cards.

Don’t worry about screen-off during live broadcast

Keep control room operating 24/7 without any downtime

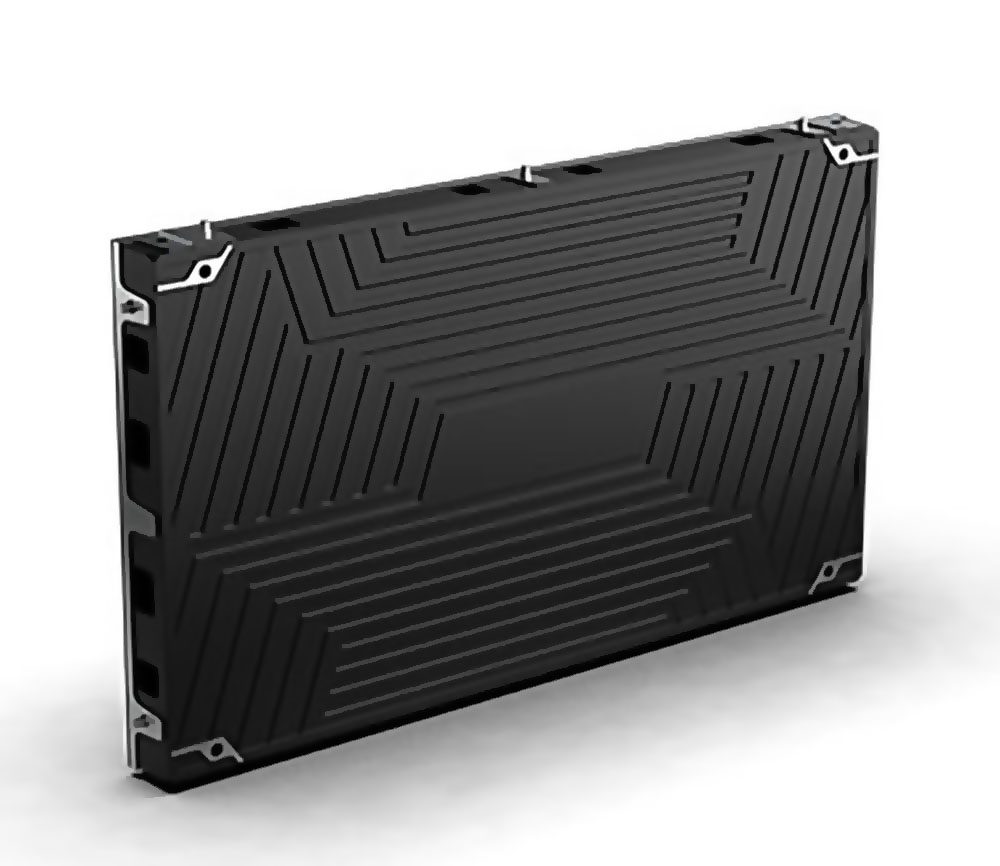

Good heat dissipation, stable performance

Natural air – cooled veins, high and low lines also greatly improve the heat dissipation strength.

Die cast aluminum case

Excellent flatness

Modular Position pins have screw thread with adjustable height, make sure no gaps and bezels between modules on the LED display. Four edges of the cabinets have many cabinet positioning pins, ensure that different cabinet aligned at the same flat.Customized connection plates, connect the cabinet with structures body accurately and firmly.

Full front maintenance

Using die-casting integrated cabinet, power supply, HUB board, system card, module all is install/remove from the front of the cabinet, wall installation saves space.

Specifications

Module LED BeadIMD SMD1010 SMD1010 SMD1010 SMD2020
 Module Resolution (WxH)160 x 360 120 x 270 96 x 10880 x 90 64 x 72
Module Size (mm) 150*337.5/150*168.75
Cabinet Cabinet Size 600 x 337.5 x 47mm
Cabinet Resolution 640 X 360480 X 270384 X 216320 X 180240 X 144
Optical ParameterWhite Balance Brightness (nits)500-600
Calibration Data Store Flash Store
CCT (K) C3000-10000 Adjustable
View Angle FIN ( °)160 / 140
Contrast8000:01:00
Electric ParameterPeak Power (W/m2) 450
 Av. Power (W/m2) 150
Processing PerformanceDrive ModeConstant-current Driver
Frame Rate (Hz)50&60
Refresh Rate (Hz) 3840
Operation Parameter Operating Temperature (C°) -10-+40
Storage Temperature (C°)-20-+60
Operating Humidity Range (RH)10 -- 80% Nodew
Storage Humidity Range (RH)10 -- 85% Nodew
