LED Display – Leyard Mini Box Series

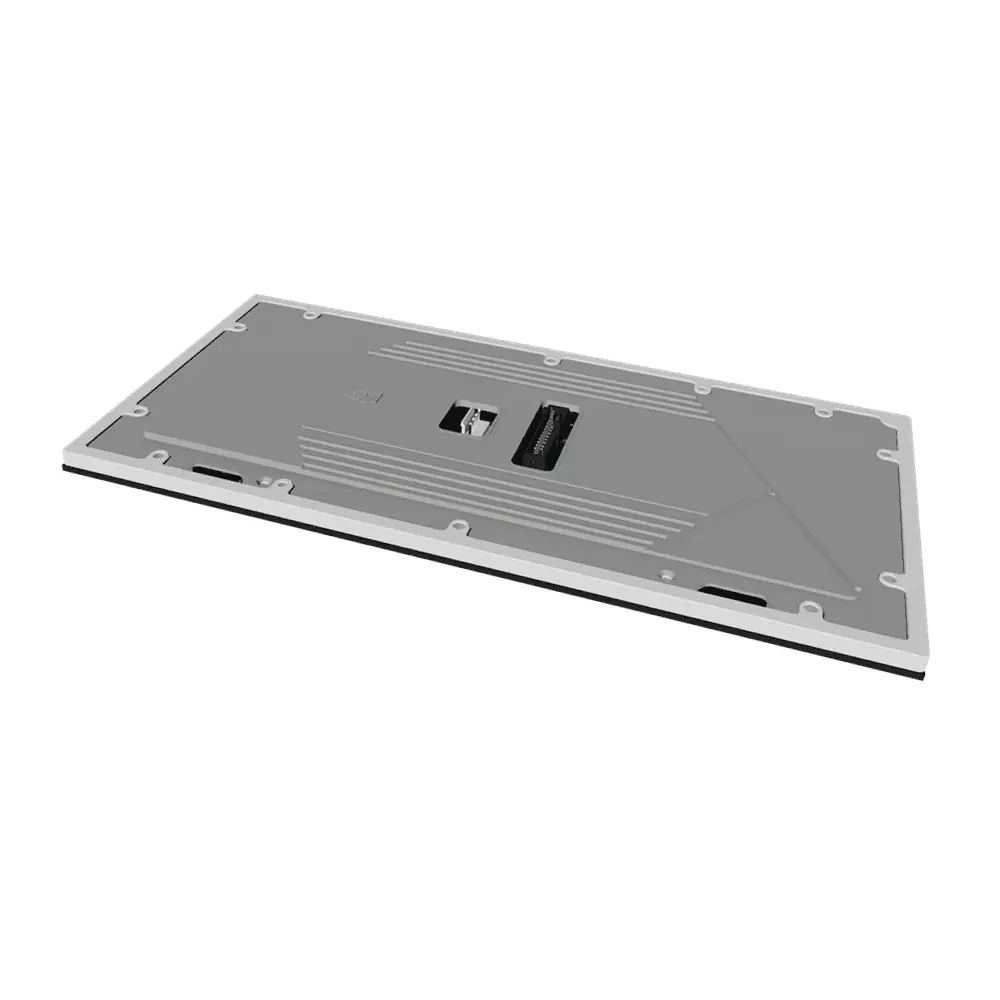

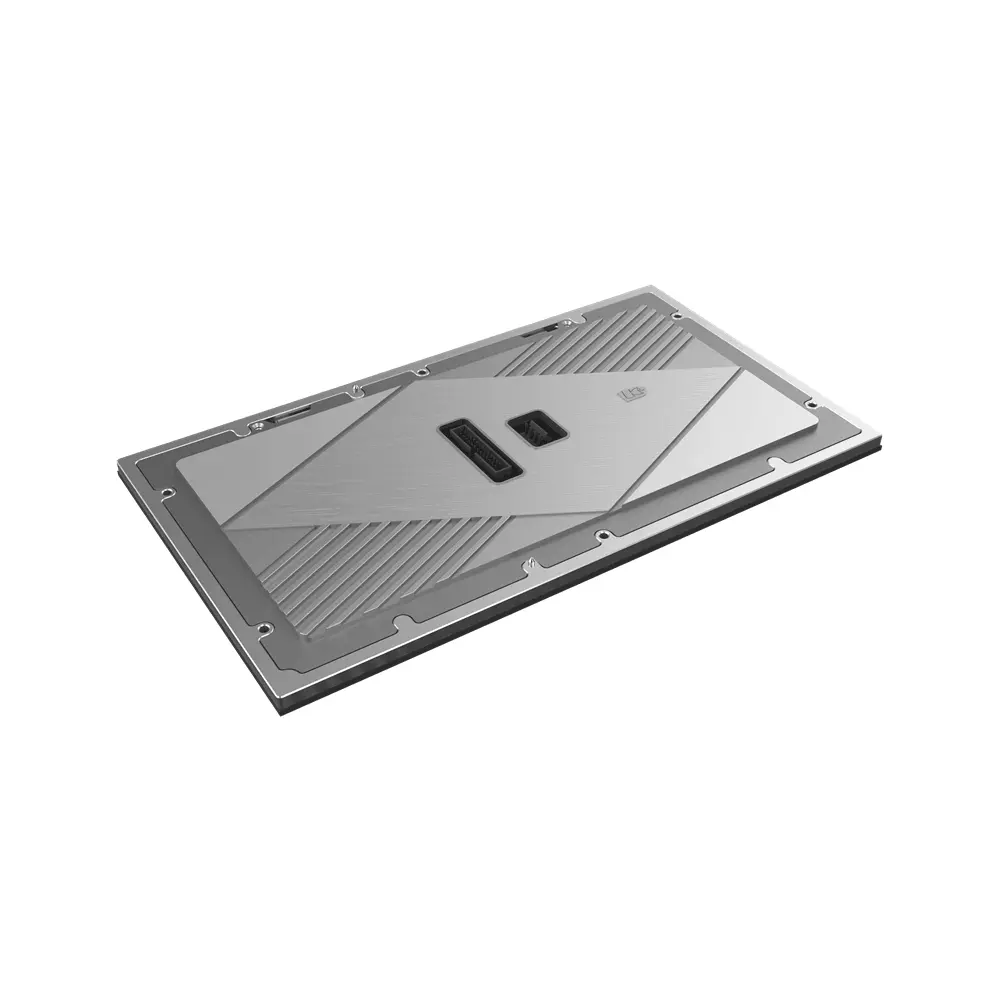

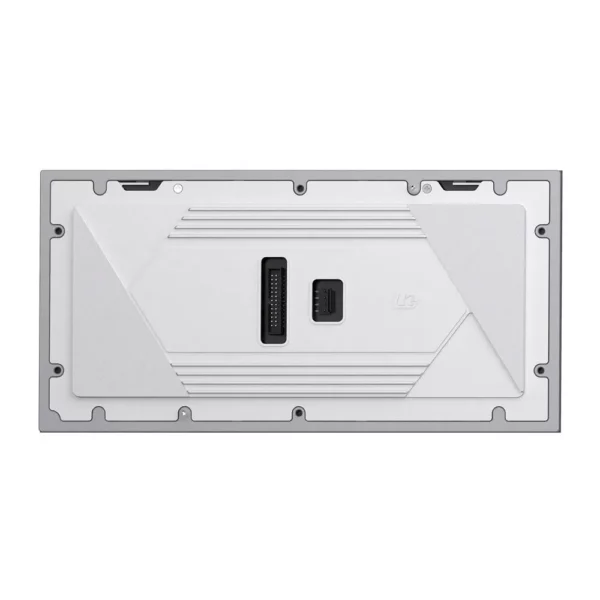

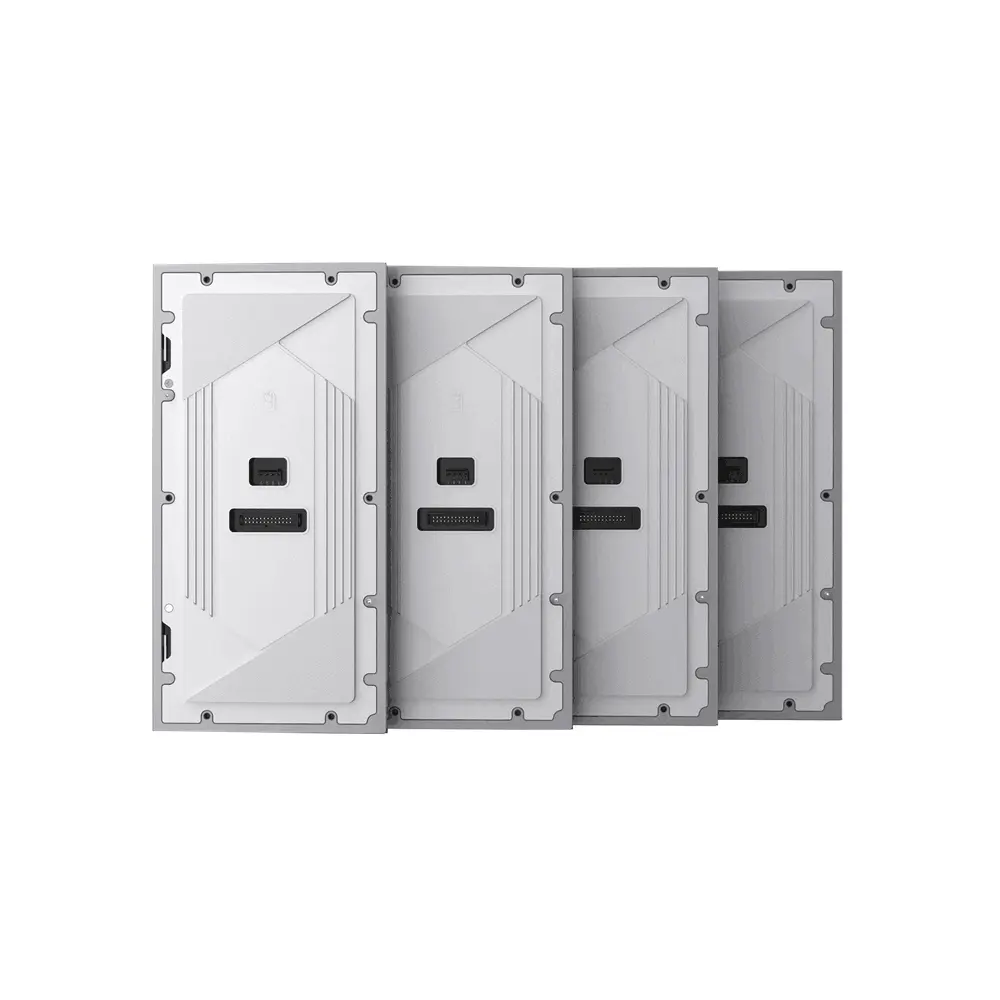

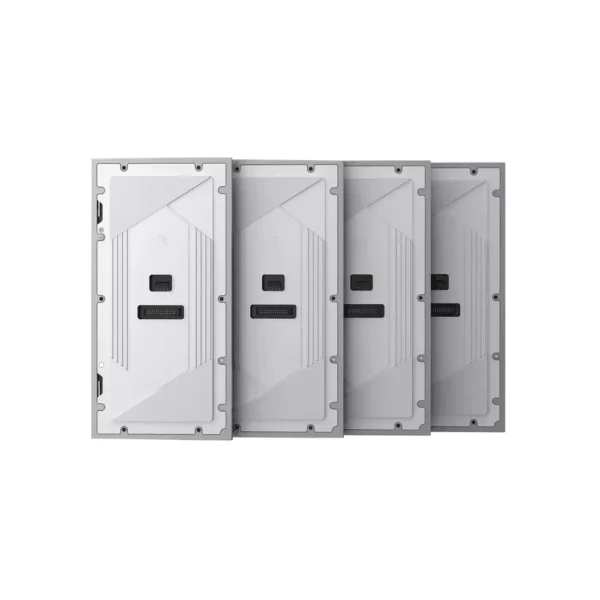

Mini Box Series Fine Pitch LED Display Module

LCH Series–Module Size: 320*160mm, Common anode
LEH Plus Series–Module Size: 320*180mm, Common cathode

DESCRIPTIONS

Mini Box Series Fine Pitch LED Display Module

KEY FEATURES

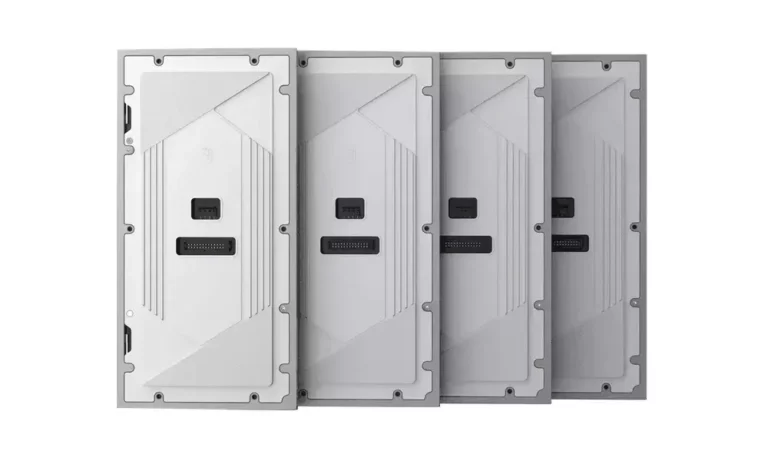

leyard led display videowall mini box series 1000x600 002

– Aluminum housing and thermally conductive double-sided adhesive for better heat dissipation

-Snap-on back cover, removable without tools

-Ultra-thin but strong and non-deformable module

-Module flatness ≤ 0.1mm

-Data group storage, automatic read back of calibration data

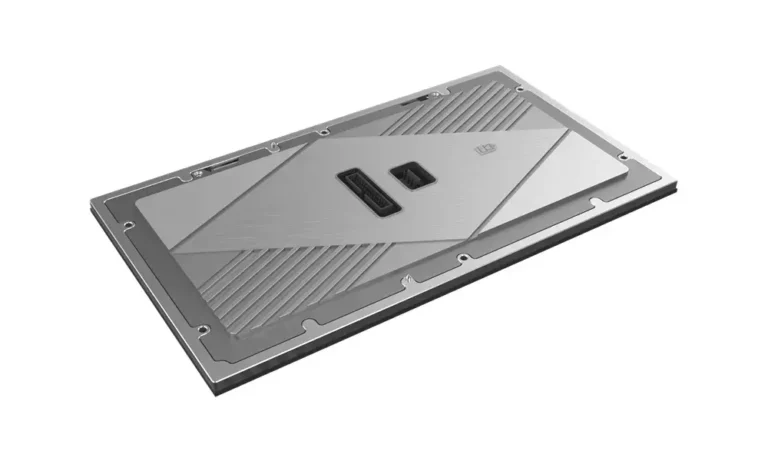

leyard led display videowall mini box series 1000x600 001

-Support HDR/3D display/MOB optical film application

-Pixel-by-pixel brightness correction, by adjusting the current flowing into each LED to achieve brightness consistency

-Smart LED module

  • Data group storage, automatic read back of calibration data
  • Automatic loading
  • Automatic connection
  • Automatically adjust color temperature (text mode, standard mode, video mode)
  • Automatic dehumidification

SPECIFICATIONS

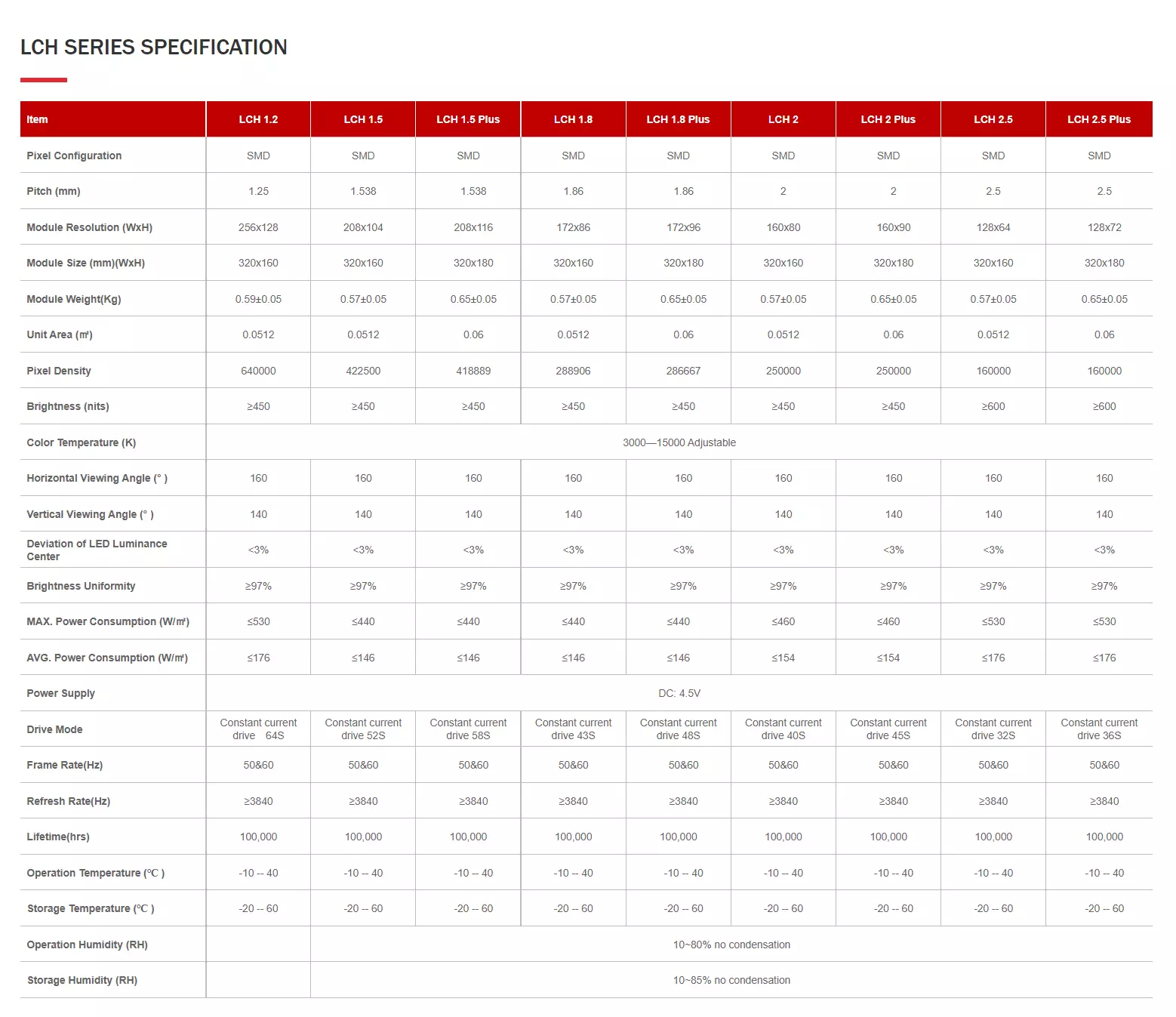

leyard led display videowall mini box series spec 1

leyard led display videowall mini box series spec 2
