PARTILINK HDMI 2.0 / DP / VGA MULTIVIEWER - QV41

Multiview Video Processor

Descriptions

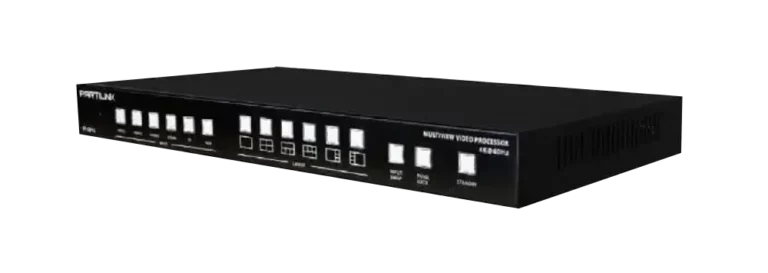

partilink Videowall QV41 1new

HDMI 2.0 / DP / VGA MULTIVIEWER - QV41

The Partilink VP-QV41 Multiview Video Processor is a user-friendly HDMI, VGA and DisplayPort video scaler and multiviewer designed to display up to four video sources on one [email protected] 4:4:4 screen simultaneously. It handles any input resolution up to [email protected] to output maximum [email protected] or downscale the resolution.

Key Features

  • Fast switching between input channels and combined multiple images on single monitor
  • Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 also handle VGA, and DisplayPort sources
  • Input resolution up to [email protected], 4:4:4 color sampling
  • Output resolution up to [email protected], 4:4:4 color samplingScaling up to [email protected], 4:4:4 color sampling and able to downscale as well
  • PiP, PoP and multi-view layout configurations
  • 14 different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts

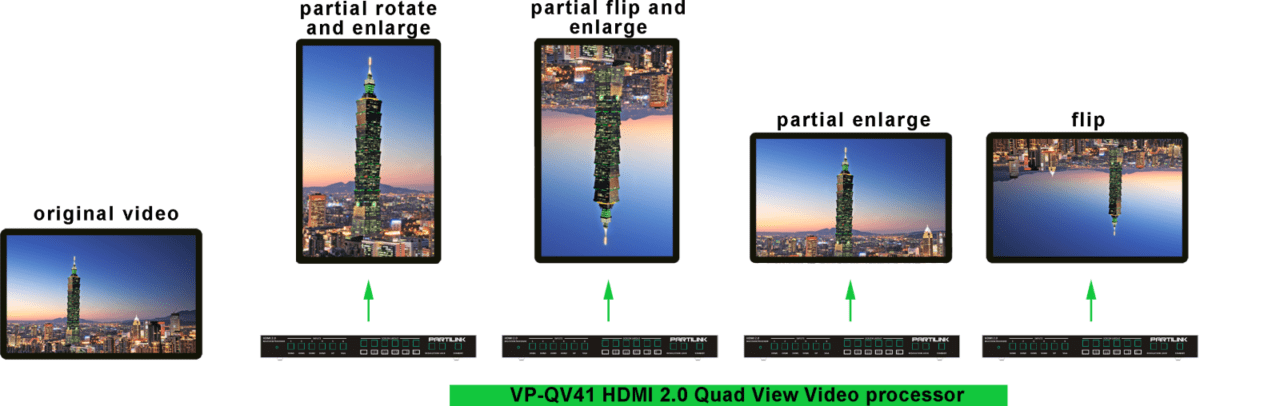

  • Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen mode
  • Stereo audio output and input
  • Control by front panel button, IR remote control, RS232/Telnet and Web UI
  • Firmware upgrade via USB port
  • DP loop through output

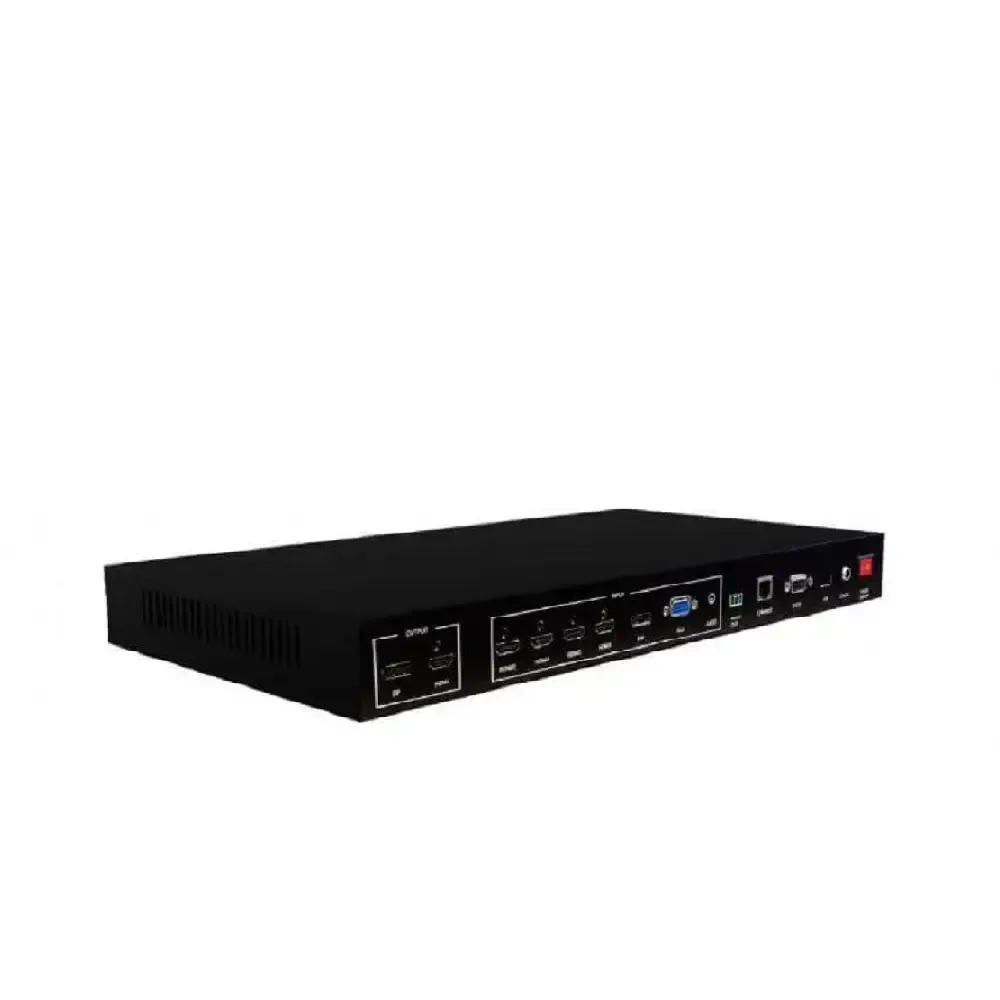

partilink_Videowall_QV41

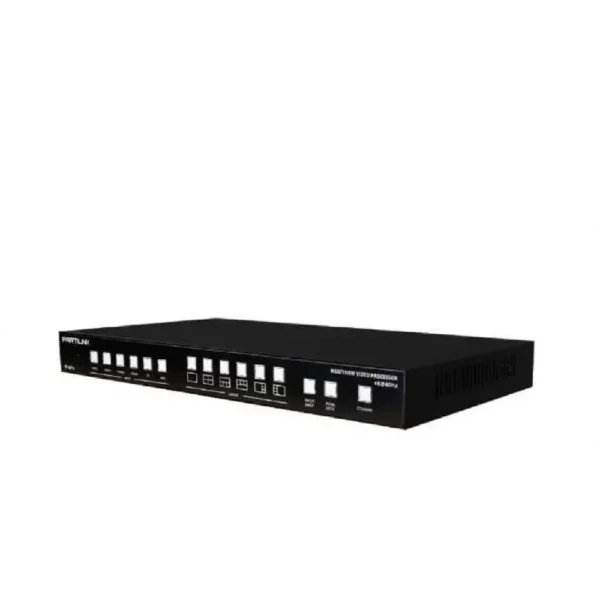

partilink_Videowall_QV41

Specifications

Dimensions

440.4 x 230 x 45 mm (L x W x H, standard 1U)

Fixing Components

rear bracket, footpad and screws

Weight

2.72 KG

System Structure

pure hardware

Operating System

no CPU and operating system

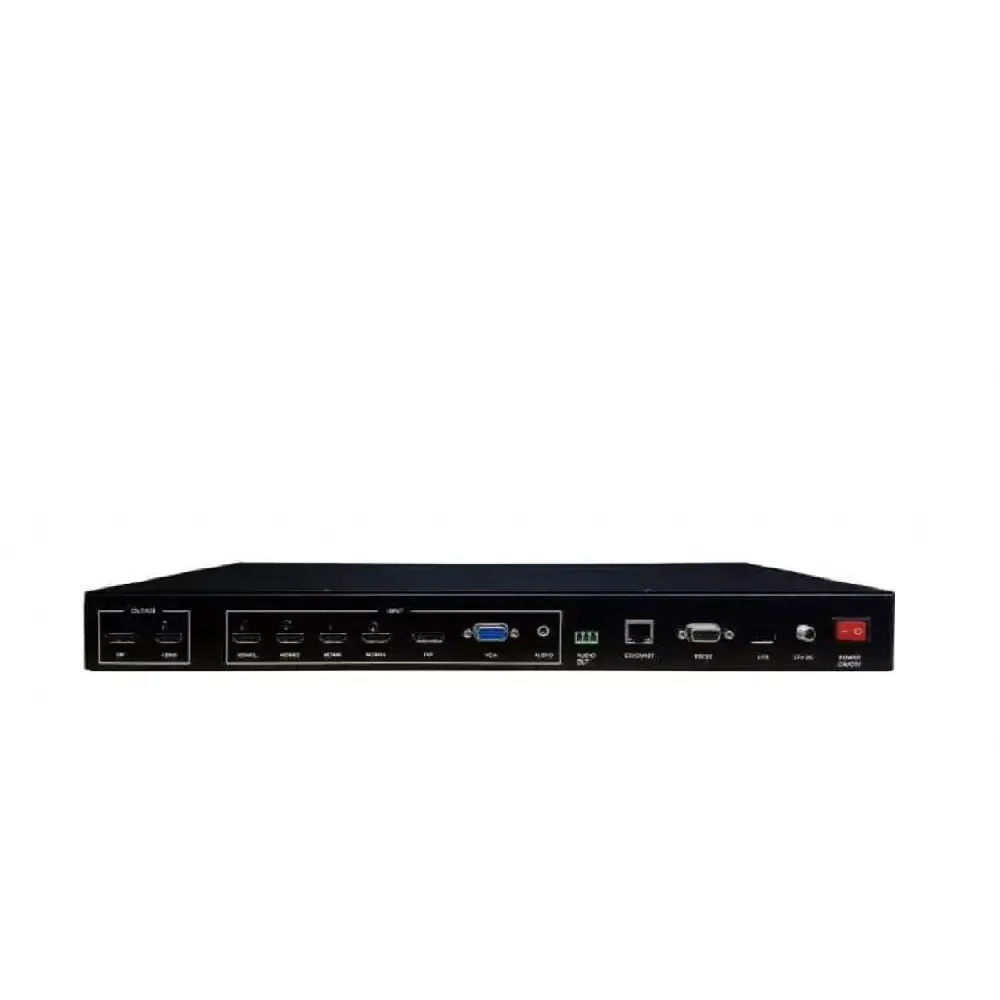

INPUT/ OUTPUT

Inputs

4 x HDMI 2.0 with locking, 1 x DisplayPort 1.2, 1 x VGA + 1 x 3.5mm Audio jack

Output

1 x HDMI 2.0 with locking, 1 x DisplayPort 1.2

Audio Output

Terminal Block 3 Pole, Stereo













IMAGE PROCESSING

Display Mode

full screen, Quad view, PiP, PoP

Input Resolution

up to 3840 x [email protected], 4:4:4 color sampling

Max Output Resolution

up to 3840 x [email protected], 4:4:4 color sampling



Output Resolutions



3840x2160 - 60Hz, 50Hz, 30Hz              1920x1080 - 60Hz

1280x720 - 60Hz                                  720x480 - 60Hz

Output Color Depth

8 bpc (24 bit/px)

Scaler

scaling up to [email protected], 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2







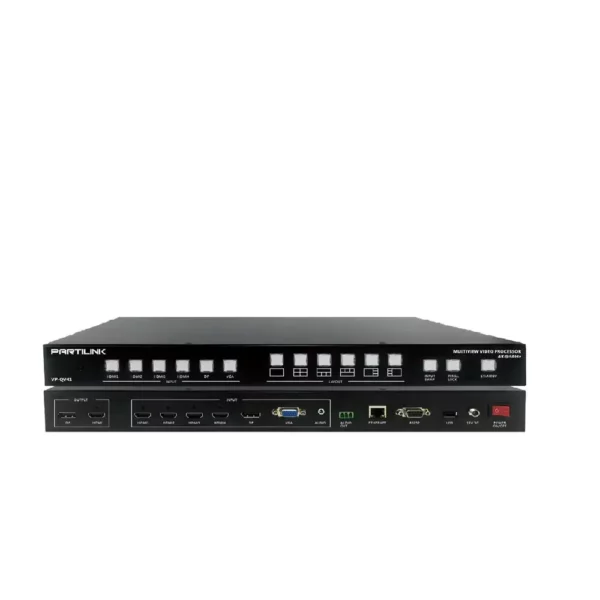

CONTROL METHODS



Front Panel Buttons

4 x select HDMI 1,2,3,4 input and/or audio, 1x DisplayPort, 1 x VGA, 6 x display layout, 1 x Input Swap, 1 x Panel lock, 1x Standby

IR

1 x IR remote control

RS232/ Telnet

1 x D9 Female Connector / Compatible with third party control system

Ethernet Port

1 x RJ45

Web UI

browser / touch screen



STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0







LED INDICATOR

Input

blue backlight

Output

blue backlight

Panel Lock

blue backlight

Standby On

red backlight

Standby Off

green backlight



POWER

Internal Power Supply

DC 12V/2A, locking barrel connector

Power Consumption

15W

Power Adaptor

universal power adapter



ENVIRONMENT

Operating Temperature

0 °C~45°C

Operating Humidity

20~90% RH

Storage Temperature

-20 °C~60 °C
