Descriptions

OVERVIEW

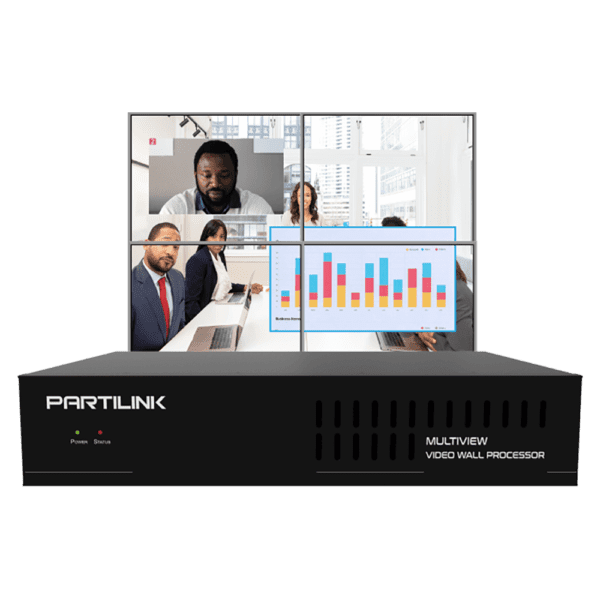

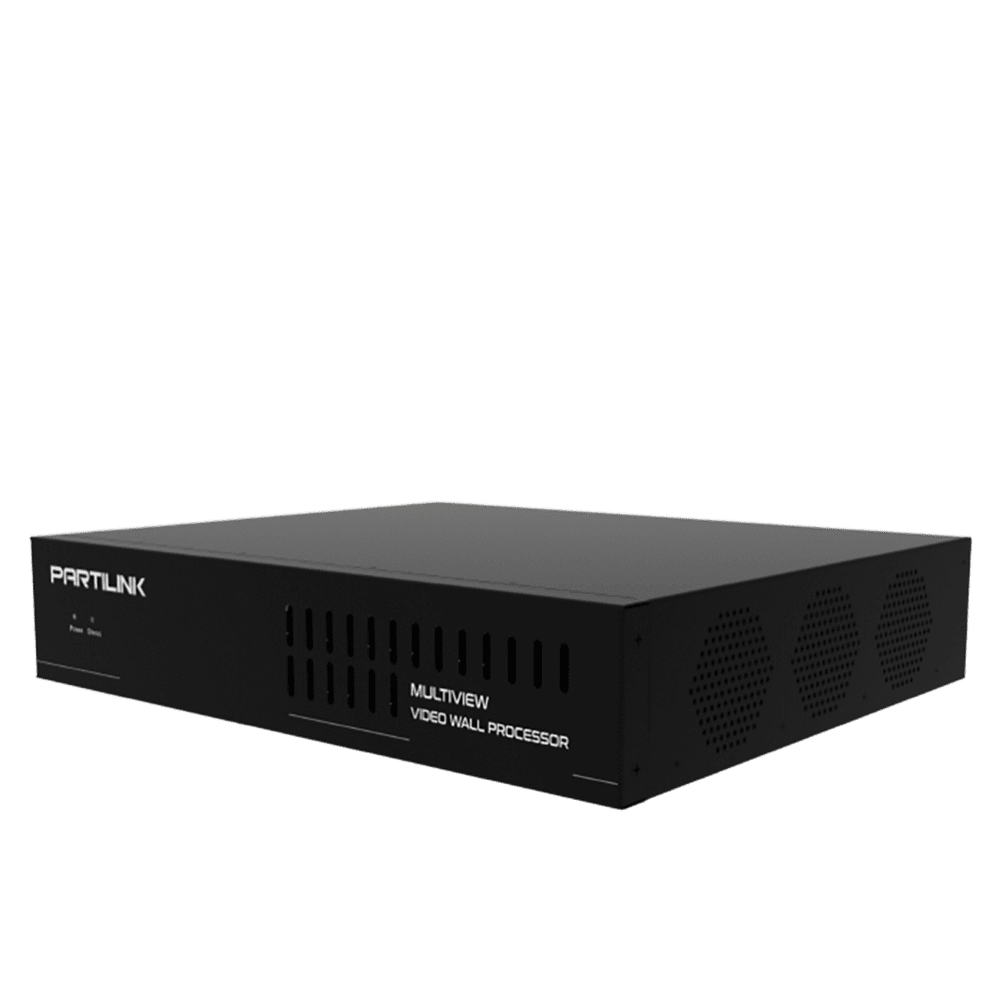

The Partilink MW4-4 HDMI 2.0 Multiview Video Wall Processor is an all-in-one video wall system
with multiview, scaling, customizing screen layouts, audio management and matrix.

Key Features

FEATURES

Fast switching between input channels and combined multiple source images on video wall
Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 sources
Input resolution up to [email protected], 4:4:4 color sampling
Output resolution up to [email protected], 4:4:4 color sampling
Upscaling up to [email protected], 4:4:4 color sampling and able to downscale as well

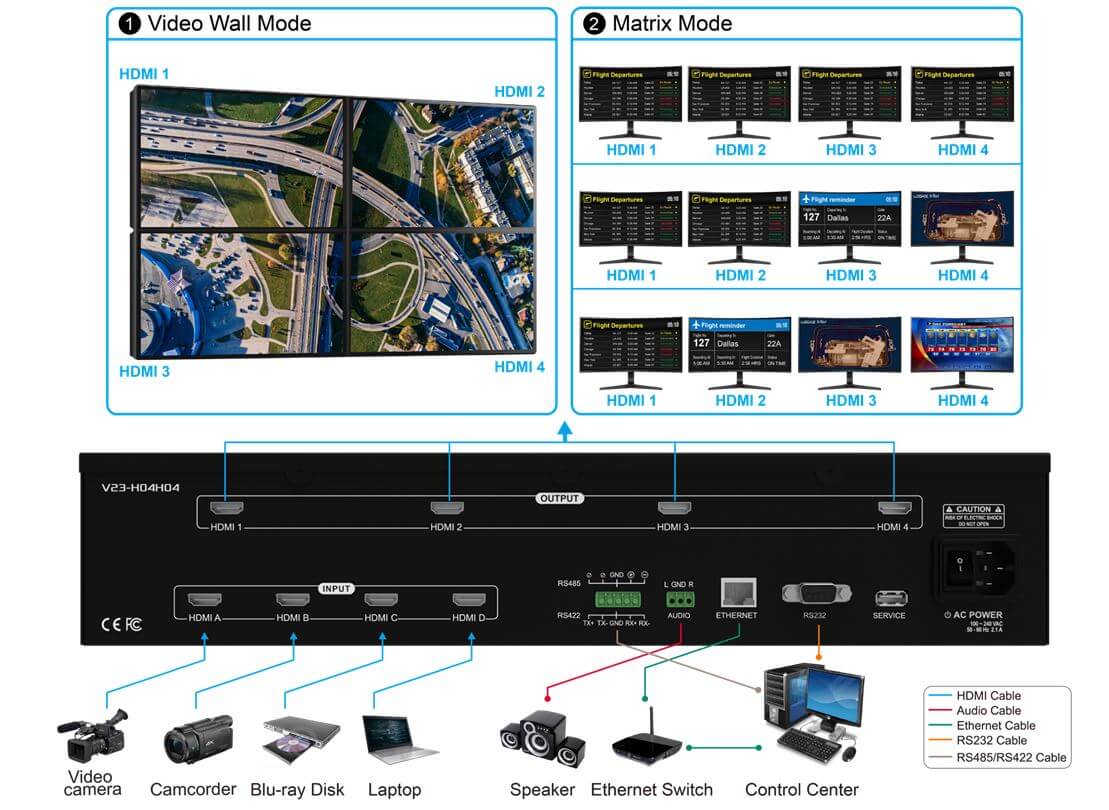

PiP, PoP, quad-view flip and multiple customized screen layout configurations for video wall and matrix display
Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
Stereo audio output
Control by web UI, RS232, RS485, RS422 and telnet
Firmware upgrade via USB port
Built-in power supply

APPLICATION

Hospitality in lobby, hospital, clinic
Conference room presentation
Advertising in shopping mall, supermarket, restaurant,
Broadcast in airport, bus or train station, classroom, Casino
Rental and staging
Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
Integrating with DVR, IP camera as a surveillance system
Monitoring in bank and stock market

Specifications

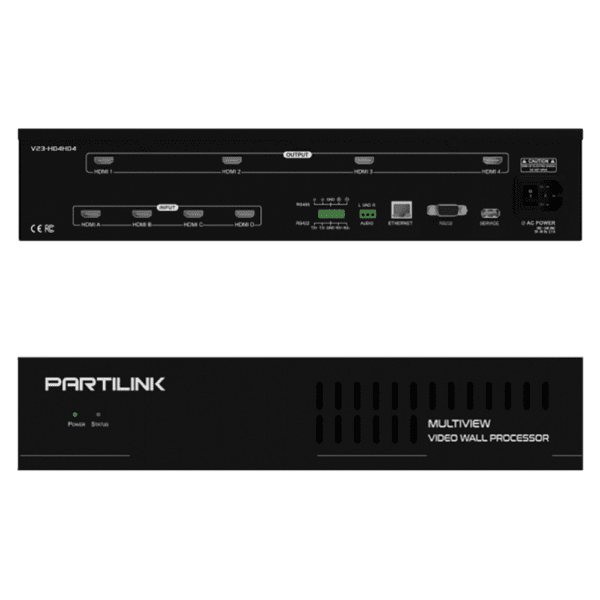

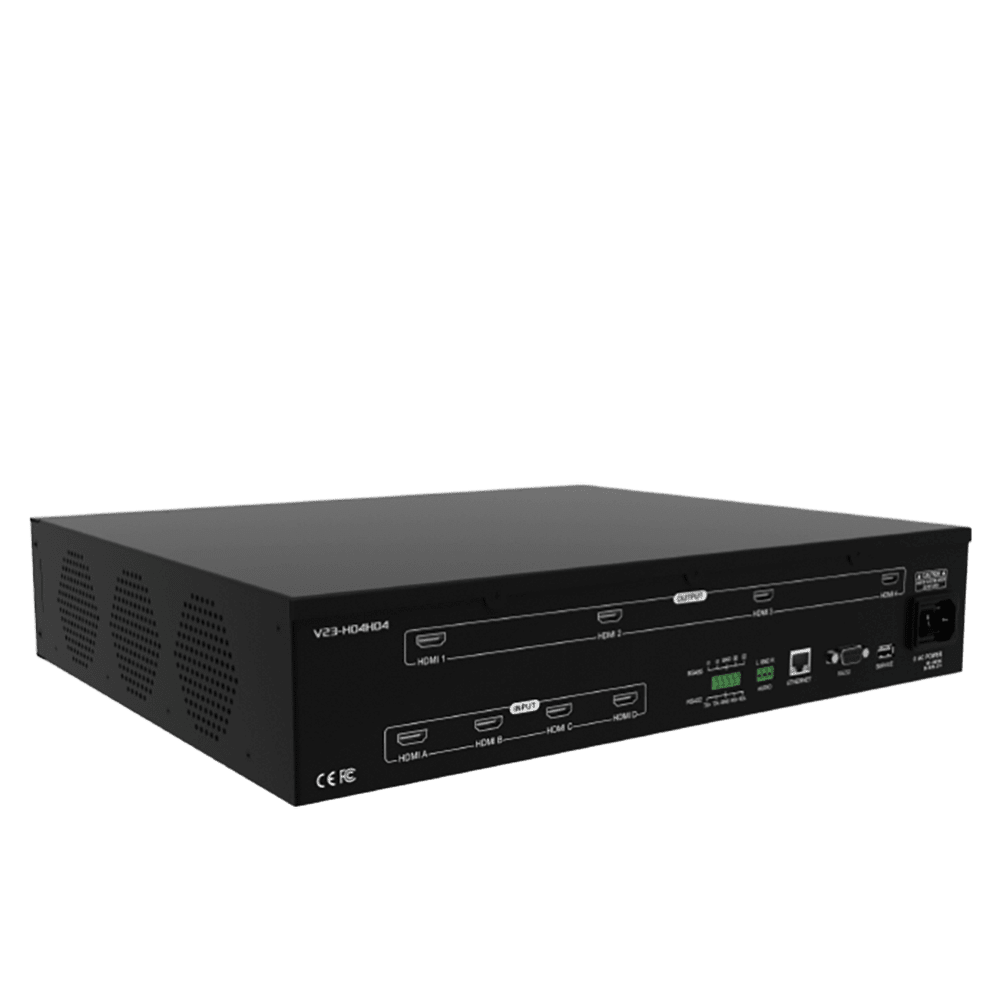

Inputs
4 x HDMI 2.0

Output
4 x HDMI 2.0

Audio Output
terminal block 3 pole, stereo

Display Mode
full screen, PIP, POP, rotation R90°/ L90°, cross screen, quadview, matrix

Input Resolution
4096 x 2160p (60Hz, 50Hz, 24Hz)
3840 x 2160p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)
2560 x 1080p (60Hz)
1920 x 1080p (60Hz, 50Hz, 30Hz, 25Hz, 24Hz)
1920 x 1080i (60Hz, 50Hz)
1280 x 720p (60Hz)
720 x 480p (60Hz, 50Hz)
720 x 576p (50Hz)
640 x 480p (60Hz, 50Hz)

Input Color format
4:4:4

Output Resolutions
4096 x 2160p (60Hz ,50Hz, 24Hz)
3840 x 2160p (60Hz, 50Hz, 30Hz, 24Hz)
2048 x 2048p (57Hz)
1920 x 1200p (60Hz)
1920 x 1080p (60Hz, 50Hz, 30Hz, 24Hz)
1600 x 1200p (60Hz)
1280 x 720p (60Hz, 30Hz)

Output Color Format
4:4:4

Output Color Depth
24 bpp

Scaler
scaling up to 4K @60Hz,
4:4:4 color sampling and downscaling as well

Video Bandwidth
up to 18 Gbps

HDMI Compliance
HDMI 1.4 And HDMI 2.0

HDCP Compliance
HDCP 1.4 And HDCP 2.2

RS232 / Telnet
1 x D9 female connector / compatible with third party control system

RS485 / RS422
5-pole terminal block

Ethernet Port
1 x RJ45 / compatible with third party control system

Web UI
browser / touch screen via smartphone or tablet

Safety
hardware structure, no risk of virus interference

Running Time
no auto-reboot during 365 days/year, 7days/7, 24h/24

Possible Upgrade 1 x USB 2.0

Power Supply
built-in power module 100-240 VAC / 50/60 Hz
Power Consumption
90W
Redundant Power Supply
no

Operating Temperature
0°C ~ 40°C

Operating Humidity
0% ~ 80% RH

Storage Temperature
-20°C ~ 60°C

Dimensions
440 x 370 x 88 mm (L x W x H)

Weight
3.7 KG

Fixing Components
rear bracket, footpad and screws

Partilink Multiview Videowall Processor- MW4-4
